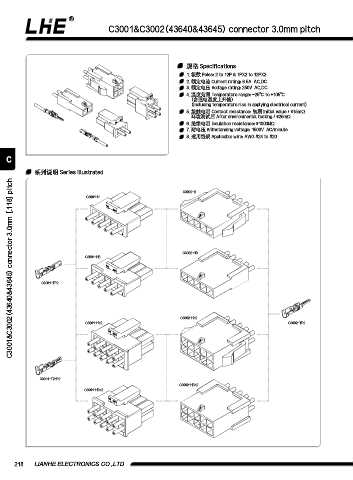

C3001&C3002(43640&43645) connector 3.0mm pitch

规格 Specifications
1. 极数 Poles: 2 to 12P & 1PX2 to 12PX2
2. 额定电流 Current rating: 8.5A AC,DC
3. 额定电压 Voltage rating: 250V AC,DC
4. 温度范围 Temperature range: -25℃ to +105℃
(含通电温度上升值)
(Including temperature rise in applying electrical current)
5. 接触电阻 Contact resistance: 初期 Initial value / ≤15mΩ
环境测试后 After environmental testing / ≤25mΩ
6. 绝缘电阻 Insulation resistance: ≥1000MΩ
7. 耐电压 Withstanding voltage: 1500V AC/minute
8. 适⽤线规 Applicable wire: AWG #24 to #20

C

系列说明 Series illustrated
C3001&C3002(43640&43645) connector 3.0mm [.118] pitch
C3002-H
C3001-H

C3002-HB
C3001-HB

C3001-TP2

C3002-HX2
C3001-HX2 C3002-TP2

C3001-T21P2
C3002-HBX2
C3001-HBX2
