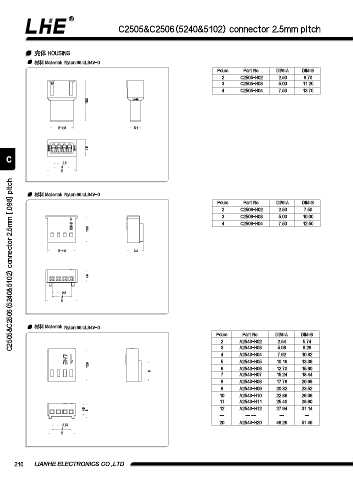

C2505&C2506(5240&5102) connector 2.5mm pitch

壳体 HOUSING
材料 Material: Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B
2 C2505-H02 2.50 8.70
3 C2505-H03 5.00 11.20
4 C2505-H04 7.50 13.70
19.2

B-2.8 5.1

7.9
C
2.5
A
B
C2505&C2506(5240&5102) connector 2.5mm [.098] pitch
材料 Material: Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B
2 C2506-H02 2.50 7.50
3 C2506-H03 5.00 10.00
4 C2506-H04 7.50 12.50
10.5

B-1.6 6.4

4.9

2.5
A
B

材料 Material: Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B
2 A2543-H02 2.54 5.74
3 A2543-H03 5.08 8.28
4 A2543-H04 7.62 10.82
5 A2543-H05 10.16 13.36
12.9 6 A2543-H06 12.70 15.90
8
7 A2543-H07 15.24 18.44
8 A2543-H08 17.78 20.98
9 A2543-H09 20.32 23.52
10 A2543-H10 22.86 26.06
11 A2543-H11 25.40 28.60
4.8 6 12 A2543-H12 27.94 31.14
-- -- -- -- --
20 A2543-H20 48.26 51.46
2.54
A
B

210 LIANHE ELECTRONICS CO.,LTD.
