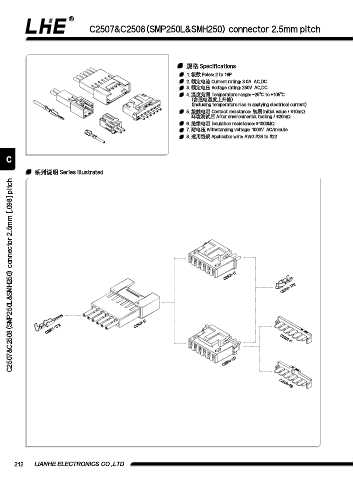

C2507&C2508(SMP250L&SMH250) connector 2.5mm pitch

规格 Specifications
1. 极数 Poles: 2 to 16P
2. 额定电流 Current rating: 3.0A AC,DC
3. 额定电压 Voltage rating: 250V AC,DC
4. 温度范围 Temperature range: -25℃ to +105℃
(含通电温度上升值)
(Including temperature rise in applying electrical current)
5. 接触电阻 Contact resistance: 初期 Initial value / ≤10mΩ
环境测试后 After environmental testing / ≤20mΩ
6. 绝缘电阻 Insulation resistance: ≥1000MΩ
7. 耐电压 Withstanding voltage: 1000V AC/minute
8. 适⽤线规 Applicable wire: AWG #28 to #22

C

系列说明 Series illustrated
C2507&C2508(SMP250L&SMH250) connector 2.5mm [.098] pitch

C2508-H
C2508-TP2

C2507-TP2 C2507-H C2508-F

C2508-SH C2508-FB
