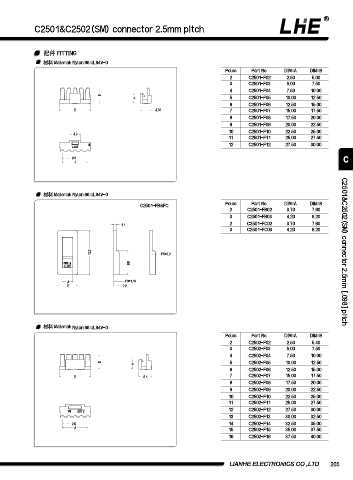

C2501&C2502(SM) connector 2.5mm pitch

配件 FITTING
材料 Material: Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B
2 C2501-F02 2.50 5.00
3 C2501-F03 5.00 7.50
4 C2501-F04 7.50 10.00
6
4 5 C2501-F05 10.00 12.50
6 C2501-F06 12.50 15.00
B 4.35 7 C2501-F07 15.00 17.50
8 C2501-F08 17.50 20.00
9 C2501-F09 20.00 22.50
10 C2501-F10 22.50 25.00
4.2
11 C2501-F11 25.00 27.50
12 C2501-F12 27.50 30.00

2.5 C
A

材料 Material: Nylon 66 UL94V-0

C2501-FB&FC Poles Part No. DIM=A DIM=B
2 C2501-FB02 3.70 7.60
3 C2501-FB03 4.20 8.20
1.1 2 C2501-FC02 3.70 7.60
3 C2501-FC03 4.20 8.20

17.7 FC= 0.9 C2501&C2502(SM) connector 2.5mm [.098] pitch

9.6

A FB= 1.15
B 2.2

材料 Material: Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B
2 C2502-F02 2.50 5.40
3 C2502-F03 5.00 7.50
4 C2502-F04 7.50 10.00
6 5 C2502-F05 10.00 12.50
4
6 C2502-F06 12.50 15.00
B 5.1 7 C2502-F07 15.00 17.50
8 C2502-F08 17.50 20.00
9 C2502-F09 20.00 22.50
10 C2502-F10 22.50 25.00
11 C2502-F11 25.00 27.50
12 C2502-F12 27.50 30.00
13 C2502-F13 30.00 32.50
2.5 14 C2502-F14 32.50 35.00
A
15 C2502-F15 35.00 37.50
16 C2502-F16 37.50 40.00

LIANHE ELECTRONICS CO.,LTD. 205
