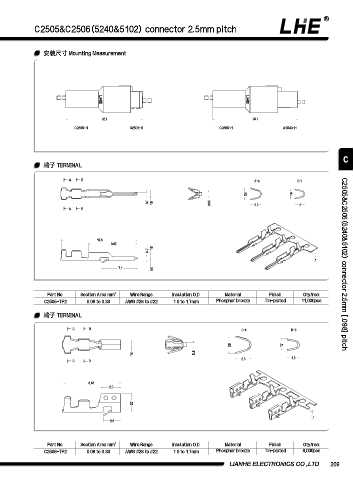

C2505&C2506(5240&5102) connector 2.5mm pitch

安装尺⼨ Mounting Measurement

22.7 25.1
C2505-H C2506-H C2505-H A2543-H

C
端⼦ TERMINAL

A B A-A B-B
2.4 1.9
0.7 1.6 0.65 2.2 2
A B

14.8
9.65
1.5
0.7

7.1 C2505&C2506(5240&5102) connector 2.5mm [.098] pitch
0.5

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
C2505-TP2 0.08 to 0.33 AWG #28 to #22 1.0 to 1.7mm Phosphor bronze Tin-plated 11,000pcs

端⼦ TERMINAL

C D C-C D-D

2.6 1.7
1.4 0.6
2.3 1.8
C D

8.45
2.9

2.7

2.6

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
C2506-TP2 0.08 to 0.33 AWG #28 to #22 1.0 to 1.7mm Phosphor bronze Tin-plated 8,000pcs

LIANHE ELECTRONICS CO.,LTD. 209
