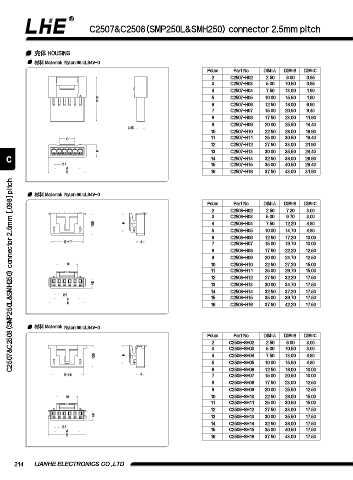

C2507&C2508(SMP250L&SMH250) connector 2.5mm pitch

壳体 HOUSING
材料 Material: Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B DIM=C
2 C2507-H02 2.50 8.00 0.95
3 C2507-H03 5.00 10.50 0.95
4 C2507-H04 7.50 13.00 1.90
21.2 5 C2507-H05 10.00 15.50 1.90
6 C2507-H06 12.50 18.00 6.90
7 C2507-H07 15.00 20.50 9.40
8 C2507-H08 17.50 23.00 11.90
9 C2507-H09 20.00 25.50 14.40
3.85
10 C2507-H10 22.50 28.00 16.90
C 11 C2507-H11 25.00 30.50 19.40
12 C2507-H12 27.50 33.00 21.90
6 13 C2507-H13 30.00 35.50 24.40
C 14 C2507-H14 32.50 38.00 26.90
2.5 15 C2507-H15 35.00 40.50 29.40
A
B 16 C2507-H16 37.50 43.00 31.90
C2507&C2508(SMP250L&SMH250) connector 2.5mm [.098] pitch
材料 Material: Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B DIM=C
2 C2508-H02 2.50 7.20 3.00
3 C2508-H03 5.00 9.70 3.00
10.5 9 4 C2508-H04 7.50 12.20 4.80
5 C2508-H05 10.00 14.70 4.80
6 C2508-H06 12.50 17.20 10.00
B-1.7 4 7 C2508-H07 15.00 19.70 10.00
8 C2508-H08 17.50 22.20 12.50
9 C2508-H09 20.00 24.70 12.50
10 10 C2508-H10 22.50 27.20 15.00
11 C2508-H11 25.00 29.70 15.00
12 C2508-H12 27.50 32.20 17.50
4.8 13 C2508-H13 30.00 34.70 17.50
14 C2508-H14 32.50 37.20 17.50
2.5
A 15 C2508-H15 35.00 39.70 17.50
B
16 C2508-H16 37.50 42.20 17.50

材料 Material: Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B DIM=C
2 C2508-SH02 2.50 8.00 3.00
3 C2508-SH03 5.00 10.50 3.00
10.5 9 4 C2508-SH04 7.50 13.00 4.80
5 C2508-SH05 10.00 15.50 4.80
6 C2508-SH06 12.50 18.00 10.00
B-2.5 4
7 C2508-SH07 15.00 20.50 10.00
8 C2508-SH08 17.50 23.00 12.50
9 C2508-SH09 20.00 25.50 12.50
10 10 C2508-SH10 22.50 28.00 15.00
11 C2508-SH11 25.00 30.50 15.00
12 C2508-SH12 27.50 33.00 17.50
4.8 13 C2508-SH13 30.00 35.50 17.50
14 C2508-SH14 32.50 38.00 17.50
2.5
A 15 C2508-SH15 35.00 40.50 17.50
B
16 C2508-SH16 37.50 43.00 17.50

214 LIANHE ELECTRONICS CO.,LTD.
