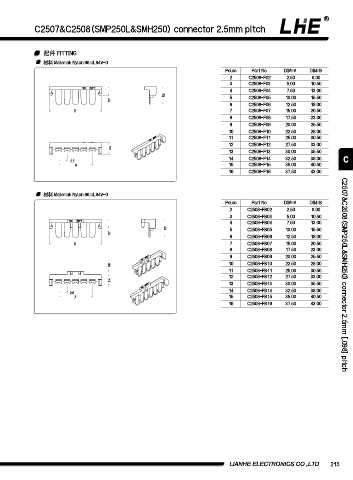

C2507&C2508(SMP250L&SMH250) connector 2.5mm pitch

配件 FITTING
材料 Material: Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B
2 C2508-F02 2.50 8.00
3 C2508-F03 5.00 10.50
4 C2508-F04 7.50 13.00
5.3 5 C2508-F05 10.00 15.50
2.7
6 C2508-F06 12.50 18.00
B 7 C2508-F07 15.00 20.50
8 C2508-F08 17.50 23.00
9 C2508-F09 20.00 25.50
10 C2508-F10 22.50 28.00
11 C2508-F11 25.00 30.50
12 C2508-F12 27.50 33.00
3.4
13 C2508-F13 30.00 35.50
14 C2508-F14 32.50 38.00 C
2.5
A 15 C2508-F15 35.00 40.50
16 C2508-F16 37.50 43.00

材料 Material: Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B
2 C2508-FB02 2.50 8.00
3 C2508-FB03 5.00 10.50
4 C2508-FB04 7.50 13.00
5.3 5 C2508-FB05 10.00 15.50
2.7
6 C2508-FB06 12.50 18.00
B 7 C2508-FB07 15.00 20.50
8 C2508-FB08 17.50 23.00
9 C2508-FB09 20.00 25.50
0.9 10 C2508-FB10 22.50 28.00
11 C2508-FB11 25.00 30.50
12 C2508-FB12 27.50 33.00 C2507&C2508(SMP250L&SMH250) connector 2.5mm [.098] pitch
3.4
13 C2508-FB13 30.00 35.50
14 C2508-FB14 32.50 38.00
2.5
A 15 C2508-FB15 35.00 40.50
16 C2508-FB16 37.50 43.00

LIANHE ELECTRONICS CO.,LTD. 215
