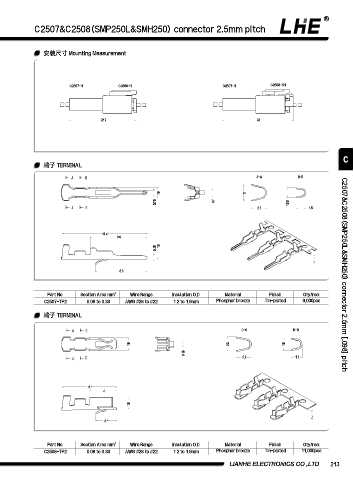

C2507&C2508(SMP250L&SMH250) connector 2.5mm pitch

安装尺⼨ Mounting Measurement

C2507-H C2508-H C2507-H C2508-SH

22.7 24

C
端⼦ TERMINAL

A B A-A B-B

1.9 3
0.75 0.7 1.65
A B 2.6 1.5

14.4
9.6
0.75 1.5

8.8 C2507&C2508(SMP250L&SMH250) connector 2.5mm [.098] pitch

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
C2507-TP2 0.08 to 0.33 AWG #28 to #22 1.2 to 1.9mm Phosphor bronze Tin-plated 9,000pcs

端⼦ TERMINAL

C D C-C D-D

1.9 2.3 1.8
0.85
C D 2.2 1.6

8.1
4
1.8

3.1

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
C2508-TP2 0.08 to 0.33 AWG #28 to #22 1.2 to 1.9mm Phosphor bronze Tin-plated 11,000pcs

LIANHE ELECTRONICS CO.,LTD. 213
