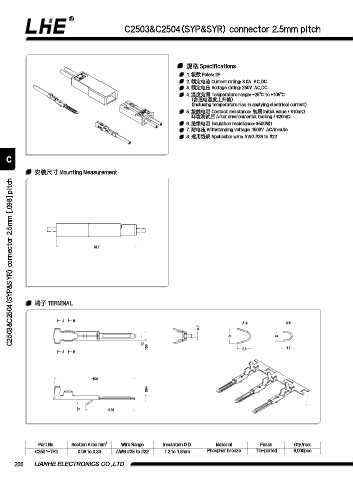

C2503&C2504(SYP&SYR) connector 2.5mm pitch

规格 Specifications
1. 极数 Poles: 2P
2. 额定电流 Current rating: 3.0A AC,DC
3. 额定电压 Voltage rating: 250V AC,DC
4. 温度范围 Temperature range: -25℃ to +105℃
(含通电温度上升值)
(Including temperature rise in applying electrical current)
5. 接触电阻 Contact resistance: 初期 Initial value / ≤10mΩ
环境测试后 After environmental testing / ≤20mΩ
6. 绝缘电阻 Insulation resistance: ≥500MΩ
7. 耐电压 Withstanding voltage: 1500V AC/minute
8. 适⽤线规 Applicable wire: AWG #28 to #22

C

安装尺⼨ Mounting Measurement
C2503&C2504(SYP&SYR) connector 2.5mm [.098] pitch

23.7

端⼦ TERMINAL

A B
A-A B-B
0.7
3 2
1.1
1.85 2.6 1.8
A B

15.9
0.64

1.7 9.65

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
C2501-TP2 0.08 to 0.33 AWG #28 to #22 1.2 to 1.8mm Phosphor bronze Tin-plated 8,000pcs
