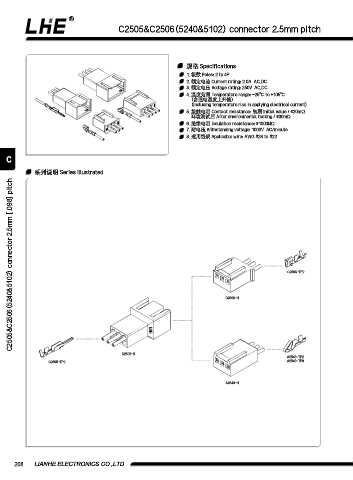

C2505&C2506(5240&5102) connector 2.5mm pitch

规格 Specifications
1. 极数 Poles: 2 to 4P
2. 额定电流 Current rating: 2.0A AC,DC
3. 额定电压 Voltage rating: 250V AC,DC
4. 温度范围 Temperature range: -25℃ to +105℃
(含通电温度上升值)
(Including temperature rise in applying electrical current)
5. 接触电阻 Contact resistance: 初期 Initial value / ≤20mΩ
环境测试后 After environmental testing / ≤30mΩ
6. 绝缘电阻 Insulation resistance: ≥1000MΩ
7. 耐电压 Withstanding voltage: 1000V AC/minute
8. 适⽤线规 Applicable wire: AWG #28 to #22

C

系列说明 Series illustrated
C2505&C2506(5240&5102) connector 2.5mm [.098] pitch

C2506-TP2

C2506-H

C2505-H
A2543-TP2
C2505-TP2 A2543-TP8

A2543-H
