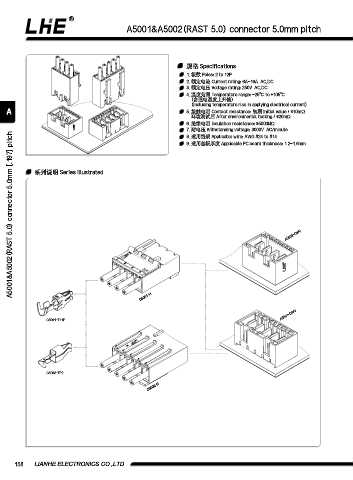

A5001&A5002(RAST 5.0) connector 5.0mm pitch

规格 Specifications
1. 极数 Poles: 2 to 12P
2. 额定电流 Current rating: 6A~16A AC,DC
3. 额定电压 Voltage rating: 250V AC,DC
4. 温度范围 Temperature range: -25℃ to +105℃
(含通电温度上升值)
(Including temperature rise in applying electrical current)
A 5. 接触电阻 Contact resistance: 初期 Initial value / ≤10mΩ
环境测试后 After environmental testing / ≤20mΩ
6. 绝缘电阻 Insulation resistance: ≥5000MΩ
7. 耐电压 Withstanding voltage: 3000V AC/minute
A5001&A5002(RAST 5.0) connector 5.0mm [.197] pitch
8. 适⽤线规 Applicable wire: AWG #24 to #14
9. 适⽤基板厚度 Applicable PC board thickness: 1.2~1.6mm

系列说明 Series illustrated

A5002-DWV

C5001-H

A5001-DWV
C5001-T11P

C5002-TP2
C5002-H
