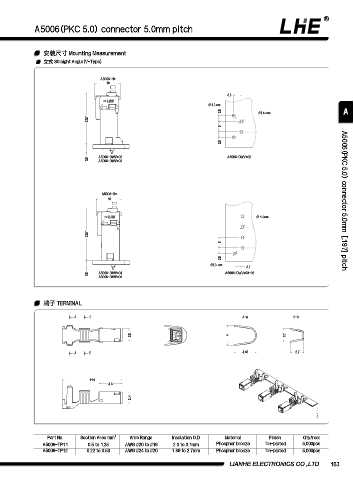

A5006(PKC 5.0) connector 5.0mm pitch

安装尺⼨ Mounting Measurement
⽴式 Straight Angle(V-Type)

A5006-H*
10

3.6
 1.3 0.05
2.6  1.4 0.05 A
20.7
5

2.6

A5006-DWV*02 A5006-DWV*02
3.5 A5006-DWV*03

A5006-H*
10 A5006(PKC 5.0) connector 5.0mm [.197] pitch

 1.4 0.05

20.7
5

2.6
 1.3 0.05
3.6
3.5 A5006-DWV*04 A5006-DWV*03~06
A5006-DWV*06

端⼦ TERMINAL

A B A-A B-B

2.5 4 2.7

A B 4.45 2.7

11.8
4.6
2.4

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
A5006-TP11 0.5 to 1.25 AWG #20 to #16 2.0 to 3.1mm Phosphor bronze Tin-plated 5,000pcs
A5006-TP12 0.22 to 0.53 AWG #24 to #20 1.89 to 2.7mm Phosphor bronze Tin-plated 5,000pcs
