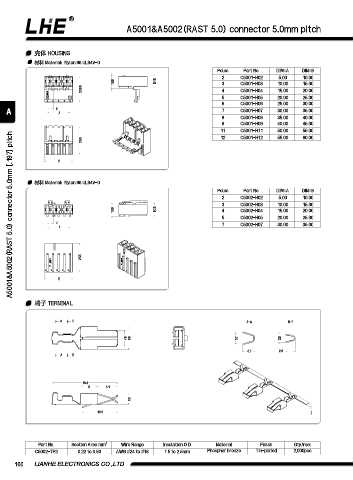

A5001&A5002(RAST 5.0) connector 5.0mm pitch

壳体 HOUSING
材料 Material: Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B
2 C5001-H02 5.00 10.00
10.6 9.15 3 C5001-H03 10.00 15.00
22.95 4 C5001-H04 15.00 20.00
5 C5001-H05 20.00 25.00
6 C5001-H06 25.00 30.00
A 5 A 7 C5001-H07 30.00 35.00
8 C5001-H08 35.00 40.00
9 C5001-H09 40.00 45.00
11 C5001-H11 50.00 55.00
A5001&A5002(RAST 5.0) connector 5.0mm [.197] pitch
12 C5001-H12 55.00 60.00
25.5

B

材料 Material: Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B
2 C5002-H02 5.00 10.00
3 C5002-H03 10.00 15.00
10.6 9.15 4 C5002-H04 15.00 20.00
5 C5002-H05 20.00 25.00
5 7 C5002-H07 30.00 35.00
A

25.5

B

端⼦ TERMINAL

A B A-A B-B

4.8 6.8 3.7 2.5

3.6 2.8
A B

19.4
5 6.1

3.3
10.6

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
C5002-TP2 0.22 to 0.83 AWG #24 to #18 1.5 to 2.5mm Phosphor bronze Tin-plated 2,000pcs
