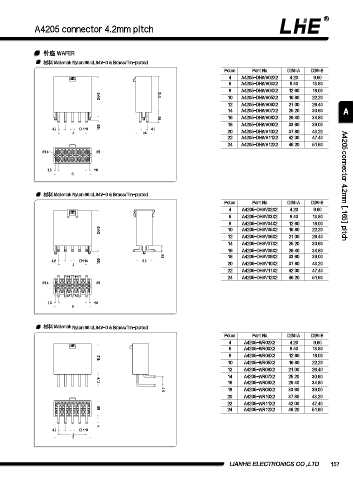

Page 175 - 浙江联和电子有限公司目录 2025-04-03

®
A4205 connector 4.2mm pitch

针座 WAFER
材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B
4 A4205-DHWV02X2 4.20 9.60
6 A4205-DHWV03X2 8.40 13.80
8 A4205-DHWV04X2 12.60 18.00
24.45 21.2 10 A4205-DHWV05X2 16.80 22.20
12 A4205-DHWV06X2 21.00 26.40
14 A4205-DHWV07X2 25.20 30.60 A
6.3 16 A4205-DHWV08X2 29.40 34.80
18 A4205-DHWV09X2 33.60 39.00
4.2  1.14 1.55 4.2
A 9.6 20 A4205-DHWV10X2 37.80 43.20
22 A4205-DHWV11X2 42.00 47.40
24 A4205-DHWV12X2 46.20 51.60
1.4 1

1.6 1.6
B

材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated A4205 connector 4.2mm [.165] pitch
Poles Part No. DIM=A DIM=B
4 A4205-DHSV02X2 4.20 9.60
6 A4205-DHSV03X2 8.40 13.80
8 A4205-DHSV04X2 12.60 18.00
24.45 10 A4205-DHSV05X2 16.80 22.20
12 A4205-DHSV06X2 21.00 26.40
14 A4205-DHSV07X2 25.20 30.60
16 A4205-DHSV08X2 29.40 34.80
3.4 18 A4205-DHSV09X2 33.60 39.00
4.2  1.14 1.55 9.6
A 20 A4205-DHSV10X2 37.80 43.20
22 A4205-DHSV11X2 42.00 47.40
24 A4205-DHSV12X2 46.20 51.60
1.4 1

1.6 1.6
B

材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B
4 A4205-WR02X2 4.20 9.60
6 A4205-WR03X2 8.40 13.80
8 A4205-WR04X2 12.60 18.00
18.2
10 A4205-WR05X2 16.80 22.20
12 A4205-WR06X2 21.00 26.40
14 A4205-WR07X2 25.20 30.60
7.14 16 A4205-WR08X2 29.40 34.80
5.3 18 A4205-WR09X2 33.60 39.00
20 A4205-WR10X2 37.80 43.20
22 A4205-WR11X2 42.00 47.40
9.6 24 A4205-WR12X2 46.20 51.60

4
4.2  1.14
A
B

LIANHE ELECTRONICS CO.,LTD. 157
