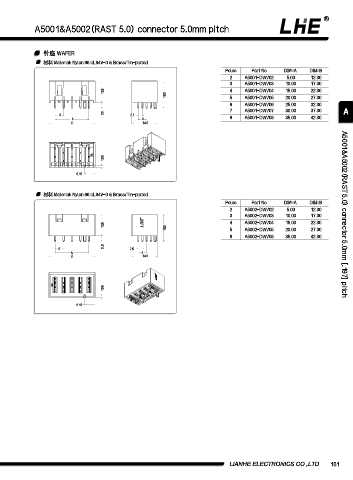

A5001&A5002(RAST 5.0) connector 5.0mm pitch

针座 WAFER
材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B
2 A5001-DWV02 5.00 12.30
3 A5001-DWV03 10.00 17.30
12.8 4 A5001-DWV04 15.00 22.30
16.3 5 A5001-DWV05 20.00 27.30
6 A5001-DWV06 25.00 32.30
7 A5001-DWV07 30.00 37.30 A
5 3.5 2.5
A 5 8 A5001-DWV08 35.00 42.30
B 14.9

1.05

6.15

材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B
2 A5002-DWV02 5.00 12.30
3 A5002-DWV03 10.00 17.30 A5001&A5002(RAST 5.0) connector 5.0mm [.197] pitch
12.8 16.3 4 5 A5002-DWV04 15.00 22.30
A5002-DWV05
27.30
20.00
8 A5002-DWV08 35.00 42.30
5 3.5 2.5
A 5
B 14.9

1.05

6.15

LIANHE ELECTRONICS CO.,LTD. 161
