P. 172
®

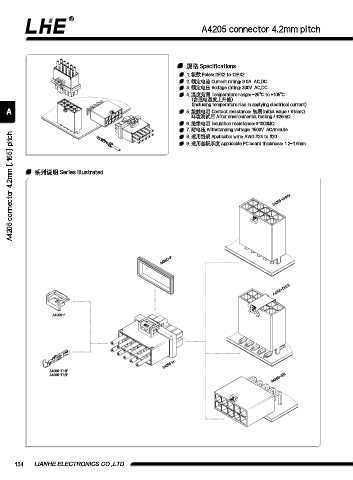

A4205 connector 4.2mm pitch
规格 Specifications
1. 极数 Poles: 2PX2 to 12PX2
2. 额定电流 Current rating: 9.0A AC,DC
3. 额定电压 Voltage rating: 300V AC,DC
4. 温度范围 Temperature range: -25℃ to +105℃
(含通电温度上升值)
(Including temperature rise in applying electrical current)
A 5. 接触电阻 Contact resistance: 初期 Initial value / ≤15mΩ
环境测试后 After environmental testing / ≤25mΩ
6. 绝缘电阻 Insulation resistance: ≥1000MΩ
7. 耐电压 Withstanding voltage: 1500V AC/minute
A4205 connector 4.2mm [.165] pitch
8. 适⽤线规 Applicable wire: AWG #24 to #20
9. 适⽤基板厚度 Applicable PC board thickness: 1.2~1.6mm
系列说明 Series illustrated
A4205-DHWV
A4205-P
A4205-DHSV
A4205-F
A4205-H
A4205-T11P
A4205-WR
A4205-T12P
154 LIANHE ELECTRONICS CO.,LTD.
