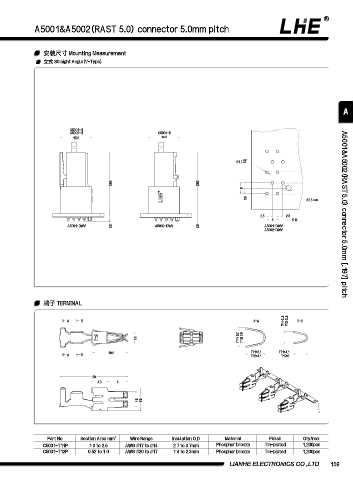

A5001&A5002(RAST 5.0) connector 5.0mm pitch

安装尺⼨ Mounting Measurement
⽴式 Straight Angle(V-Type)

A

C5001-H
C5002-H C5001-H
15.2 14.9

+ 0.1
 1.3 0 -

29.3 29.3
5
2.5  2.5 0.05

2.5 2.5 A5001&A5002(RAST 5.0) connector 5.0mm [.197] pitch
5 5.16
A5001-DWV 3.5 A5002-DWV 3.5 A5001-DWV
A5002-DWV

端⼦ TERMINAL

3.8
A B A-A T12=2.8 B-B
T11=
5.7
3.3 T12=3.9
T11=
10.5 T11= 5.8 T11= 4.1
A B T12=4.1 T12=3

20
4.9 6

4.8 6.8

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
C5001-T11P 1.0 to 2.5 AWG #17 to #14 2.7 to 3.7mm Phosphor bronze Tin-plated 1,200pcs
C5001-T12P 0.52 to 1.0 AWG #20 to #17 1.4 to 2.3mm Phosphor bronze Tin-plated 1,200pcs

LIANHE ELECTRONICS CO.,LTD. 159
