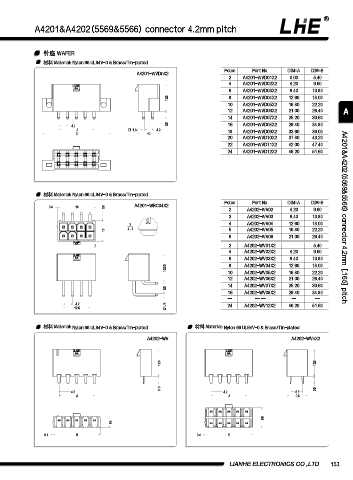

A4201&A4202(5569&5566) connector 4.2mm pitch

针座 WAFER
材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated

A4201-WVDnX2 Poles Part No. DIM=A DIM=B
2 A4201-WVD01X2 0.00 5.40
4 A4201-WVD02X2 4.20 9.60
6 A4201-WVD03X2 8.40 13.80
12.8 8 A4201-WVD04X2 12.60 18.00
10 A4201-WVD05X2 16.80 22.20
12 A4201-WVD06X2 21.00 26.40 A
14 A4201-WVD07X2 25.20 30.60
3.6 16 A4201-WVD08X2 29.40 34.80
4.2
A  1.14 4.2
B 10 18 A4201-WVD09X2 33.60 39.00
20 A4201-WVD10X2 37.80 43.20
22 A4201-WVD11X2 42.00 47.40
24 A4201-WVD12X2 46.20 51.60

材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated

A4201-WRC04X2 Poles Part No. DIM=A DIM=B
0.4 18 3.6 2 A4202-WV02 4.20 9.60
3 A4202-WV03 8.40 13.80 A4201&A4202(5569&5566) connector 4.2mm [.165] pitch
Z 4 A4202-WV04 12.60 18.00
4 : 1
10 5 A4202-WV05 16.80 22.20
6 A4202-WV06 21.00 26.40
Z 2 A4202-WV01X2 5.40
4 A4202-WV02X2 4.20 9.60
6 A4202-WV03X2 8.40 13.80
13.33 8 A4202-WV04X2 12.60 18.00
10 A4202-WV05X2 16.80 22.20
12 A4202-WV06X2 21.00 26.40
14 A4202-WV07X2 25.20 30.60
5.5
16 A4202-WV08X2 29.40 34.80
-- -- -- -- --
4.2 1.14
12.6  24 A4202-WV12X2 46.20 51.60

材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated 材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated
A4202-WV A4202-WVnX2

12.8 12.8

3.5 3.5
4.2 4.2 5.5
A A 9.6

9.6
5.4
0.4 B 0.4 B
