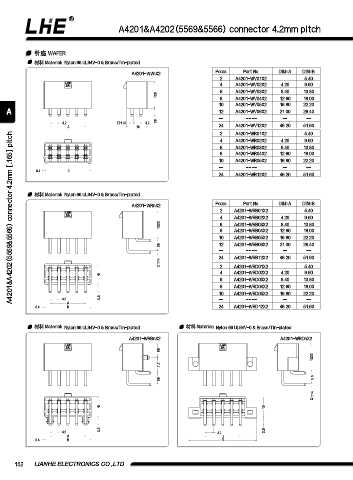

A4201&A4202(5569&5566) connector 4.2mm pitch

针座 WAFER
材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated

A4201-WVnX2 Poles Part No. DIM=A DIM=B
2 A4201-WV01X2 5.40
4 A4201-WV02X2 4.20 9.60
6 A4201-WV03X2 8.40 13.80
12.8 8 A4201-WV04X2 12.60 18.00
10 A4201-WV05X2 16.80 22.20
A 12 A4201-WV06X2 21.00 26.40
-- -- -- -- --
3.6
4.2  1.14 4.2 24 A4201-WV12X2 46.20 51.60
A 10
2 A4201-WR01X2 5.40
A4201&A4202(5569&5566) connector 4.2mm [.165] pitch
4 A4201-WR02X2 4.20 9.60
6 A4201-WR03X2 8.40 13.80
8 A4201-WR04X2 12.60 18.00
10 A4201-WR05X2 16.80 22.20
-- -- -- -- --
0.4 B
24 A4201-WR12X2 46.20 51.60

材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated

A4201-WRnX2 Poles Part No. DIM=A DIM=B
2 A4201-WRB01X2 5.40
4 A4201-WRB02X2 4.20 9.60
13.33 6 A4201-WRB03X2 8.40 13.80
8 A4201-WRB04X2 12.60 18.00
10 A4201-WRB05X2 16.80 22.20
5.5 12 A4201-WRB06X2 21.00 26.40
-- -- -- -- --
24 A4201-WRB12X2 46.20 51.60
1.14
 2 A4201-WRD01X2 5.40
4 A4201-WRD02X2 4.20 9.60
10
6 A4201-WRD03X2 8.40 13.80
8 A4201-WRD04X2 12.60 18.00
10 A4201-WRD05X2 16.80 22.20
3.6
4.2 -- -- -- -- --
A
0.4 B 24 A4201-WRD12X2 46.20 51.60

材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated 材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated
A4201-WRBnX2 A4201-WRDnX2

6.6
13.33
7.3

5.5 5.5

1.14

10 10

3.6
4.2 4.2 3.6
A A
0.4 B B
