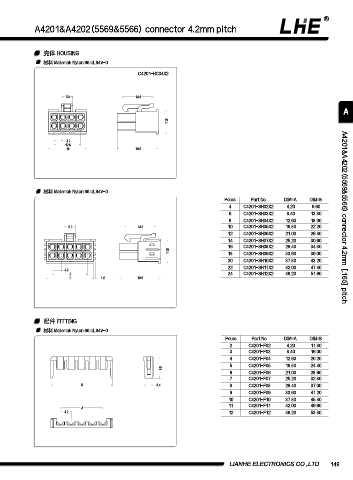

A4201&A4202(5569&5566) connector 4.2mm pitch

壳体 HOUSING
材料 Material: Nylon 66 UL94V-0

C4201-HC04X2

5.3 14.8

A
11.6

4.2
12.6
18 19.5

材料 Material: Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B
4 C4201-SH02X2 4.20 9.60
6 C4201-SH03X2 8.40 13.80
8 C4201-SH04X2 12.60 18.00 A4201&A4202(5569&5566) connector 4.2mm [.165] pitch
5.3 14.8 10 C4201-SH05X2 16.80 22.20
12 C4201-SH06X2 21.00 26.40
14 C4201-SH07X2 25.20 30.60
16 C4201-SH08X2 29.40 34.80
11.6 18 C4201-SH09X2 33.60 39.00
20 C4201-SH10X2 37.80 43.20
22 C4201-SH11X2 42.00 47.40
4.2
A 24 C4201-SH12X2 46.20 51.60
B 1.2 19.5

配件 FITTING
材料 Material: Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B
2 C4201-F02 4.20 11.80
3 C4201-F03 8.40 16.00
4 C4201-F04 12.60 20.20
8.5 5 C4201-F05 16.80 24.40
6 C4201-F06 21.00 28.60
7 C4201-F07 25.20 32.80
B 3.4 8 C4201-F08 29.40 37.00
9 C4201-F09 33.60 41.20
10 C4201-F10 37.80 45.40
11 C4201-F11 42.00 49.60
A
4.2 12 C4201-F12 46.20 53.80
