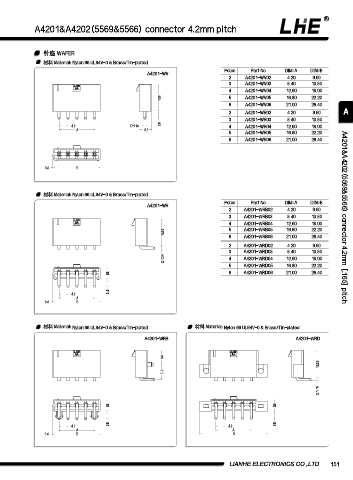

A4201&A4202(5569&5566) connector 4.2mm pitch

针座 WAFER
材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated

A4201-WV Poles Part No. DIM=A DIM=B
2 A4201-WV02 4.20 9.60
3 A4201-WV03 8.40 13.80
4 A4201-WV04 12.60 18.00
12.8 5 A4201-WV05 16.80 22.20
6 A4201-WV06 21.00 26.40
2 A4201-WR02 4.20 9.60 A
3 A4201-WR03 8.40 13.80
3.6
4.2  1.14 4 A4201-WR04 12.60 18.00
A 5.8
5 A4201-WR05 16.80 22.20
6 A4201-WR06 21.00 26.40

0.4 B

材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated

A4201-WR Poles Part No. DIM=A DIM=B
2 A4201-WRB02 4.20 9.60
3 A4201-WRB03 8.40 13.80 A4201&A4202(5569&5566) connector 4.2mm [.165] pitch
4 A4201-WRB04 12.60 18.00
13.33 5 6 A4201-WRB05 16.80 22.20
A4201-WRB06
21.00
26.40
2 A4201-WRD02 4.20 9.60
3 A4201-WRD03 8.40 13.80
1.14 4 A4201-WRD04 12.60 18.00

5 A4201-WRD05 16.80 22.20
5.8 6 A4201-WRD06 21.00 26.40

3.6
4.2
A
0.4 B

材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated 材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated
A4201-WRB A4201-WRD

6.6
13.33
7.3

1.14


5.8 5.8

4.2 3.6 4.2 3.6
A A
0.4 B B
