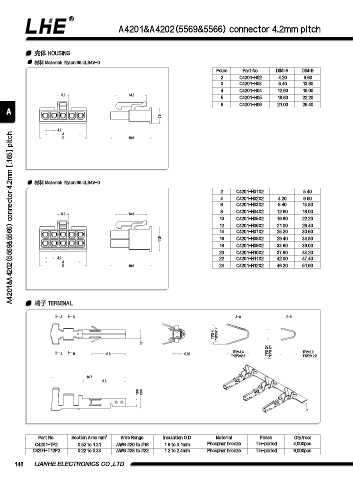

A4201&A4202(5569&5566) connector 4.2mm pitch

壳体 HOUSING
材料 Material: Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B
2 C4201-H02 4.20 9.60
3 C4201-H03 8.40 13.80
4 C4201-H04 12.60 18.00
5.3 14.8
5 C4201-H05 16.80 22.20
6 C4201-H06 21.00 26.40
A
7.4

4.2
A4201&A4202(5569&5566) connector 4.2mm [.165] pitch
A
B 19.5

材料 Material: Nylon 66 UL94V-0
2 C4201-H01X2 5.40
4 C4201-H02X2 4.20 9.60
6 C4201-H03X2 8.40 13.80
8 C4201-H04X2 12.60 18.00
5.3 14.8
10 C4201-H05X2 16.80 22.20
12 C4201-H06X2 21.00 26.40
14 C4201-H07X2 25.20 30.60
11.6 16 C4201-H08X2 29.40 34.80
18 C4201-H09X2 33.60 39.00
20 C4201-H10X2 37.80 43.20
4.2 22 C4201-H11X2 42.00 47.40
A
B 19.5 24 C4201-H12X2 46.20 51.60

端⼦ TERMINAL

A B A-A B-B

4
TP2= T12P2=2.7
1.7
A B 6.8 0.82 TP2= 4.4 TP2=2.4 T12P2=2.1 TP2= 2.9
T12P2=2.6 T12P2=2.2

14.7
8.6
1.65 2.05

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
C4201-TP2 0.52 to 1.31 AWG #20 to #16 1.9 to 3.1mm Phosphor bronze Tin-plated 4,000pcs
C4201-T12P2 0.22 to 0.33 AWG #28 to #22 1.2 to 2.4mm Phosphor bronze Tin-plated 9,000pcs

148 LIANHE ELECTRONICS CO.,LTD.
