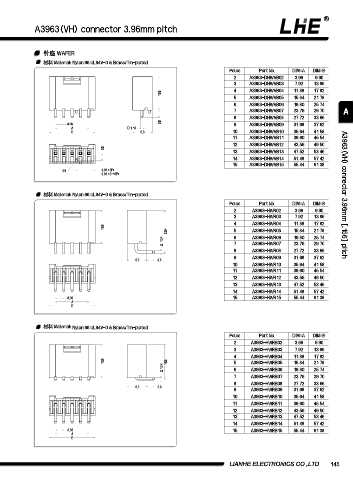

A3963(VH) connector 3.96mm pitch

针座 WAFER
材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B
2 A3963-DHWVB02 3.96 9.90
3 A3963-DHWVB03 7.92 13.86
15.8 4 A3963-DHWVB04 11.88 17.82
5 A3963-DHWVB05 15.84 21.78
6 A3963-DHWVB06 19.80 25.74
7 A3963-DHWVB07 23.76 29.70 A
8 A3963-DHWVB08 27.72 33.66
3.96 3.6 9 A3963-DHWVB09 31.68 37.62
A  1.14
B 9.3 10 A3963-DHWVB10 35.64 41.58
11 A3963-DHWVB11 39.60 45.54
12 A3963-DHWVB12 43.56 49.50
3.5
13 A3963-DHWVB13 47.52 53.46
14 A3963-DHWVB14 51.48 57.42
15 A3963-DHWVB15 55.44 61.38
1 4.95 <2P>
8.91 <3~16P>

材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated A3963(VH) connector 3.96mm [.156] pitch
Poles Part No. DIM=A DIM=B
2 A3963-HWR02 3.96 9.90
3 A3963-HWR03 7.92 13.86
4 A3963-HWR04 11.88 17.82
15.8
20.4 5 A3963-HWR05 15.84 21.78
1.14 6 A3963-HWR06 19.80 25.74
 7 A3963-HWR07 23.76 29.70
8 A3963-HWR08 27.72 33.66
9 A3963-HWR09 31.68 37.62
9.3 3.6
10 A3963-HWR10 35.64 41.58
11 A3963-HWR11 39.60 45.54
12 A3963-HWR12 43.56 49.50
13 A3963-HWR13 47.52 53.46
14 A3963-HWR14 51.48 57.42
3.96 15 A3963-HWR15 55.44 61.38
A
B

材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B
2 A3963-HWRB02 3.96 9.90
3 A3963-HWRB03 7.92 13.86
4 A3963-HWRB04 11.88 17.82
15.8 16.8 5 A3963-HWRB05 15.84 21.78
1.14
 6 A3963-HWRB06 19.80 25.74
7 A3963-HWRB07 23.76 29.70
8 A3963-HWRB08 27.72 33.66
9.3 3.6
9 A3963-HWRB09 31.68 37.62
10 A3963-HWRB10 35.64 41.58
11 A3963-HWRB11 39.60 45.54
12 A3963-HWRB12 43.56 49.50
13 A3963-HWRB13 47.52 53.46
14 A3963-HWRB14 51.48 57.42
3.96 15 A3963-HWRB15 55.44 61.38
A
B
