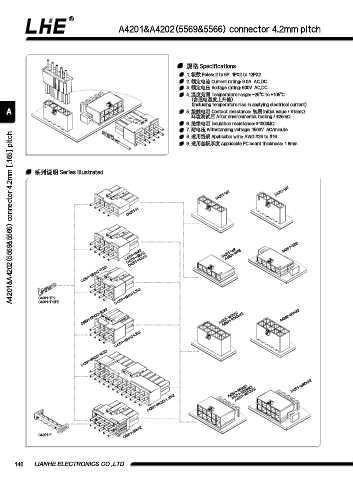

A4201&A4202(5569&5566) connector 4.2mm pitch

规格 Specifications
1. 极数 Poles: 2 to 6P 1PX2 to 12PX2
2. 额定电流 Current rating: 9.0A AC,DC
3. 额定电压 Voltage rating: 600V AC,DC
4. 温度范围 Temperature range: -25℃ to +105℃
(含通电温度上升值)
(Including temperature rise in applying electrical current)
A 5. 接触电阻 Contact resistance: 初期 Initial value / ≤15mΩ
环境测试后 After environmental testing / ≤25mΩ
6. 绝缘电阻 Insulation resistance: ≥1000MΩ
7. 耐电压 Withstanding voltage: 1500V AC/minute
A4201&A4202(5569&5566) connector 4.2mm [.165] pitch
8. 适⽤线规 Applicable wire: AWG #28 to #16
9. 适⽤基板厚度 Applicable PC board thickness: 1.6mm

系列说明 Series illustrated

A4201-WV A4202-WV

C4201-H

A4201-WRD
C4201-HnX2 A4201-WR
A4201-WRB
C4201-HBnX2
C4201-HCnX2
C4201-H04X2-R1X2

C4201-H04X2-L3X2
C4201-TP2
C4201-T12P2
C4201-H04X2-R2X2 A4201-WVnX2 A4202-WVnX2
A4201-WVCnX2

C4201-H04X2-L2X2

C4201-H12X2-R2X2

A4201-WRnX2 A4201-WRDnX2
A4201-WRBnX2
A4201-WRCnX2
C4201-H12X2-L10X2

C4201-SHnX2
C4201-F
