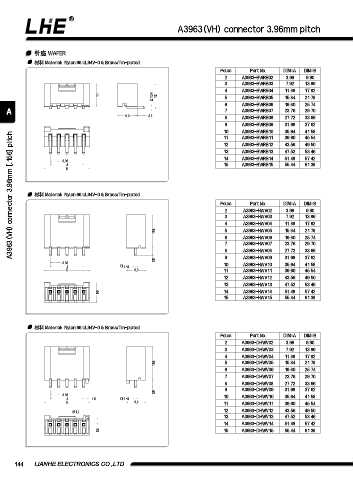

A3963(VH) connector 3.96mm pitch

针座 WAFER
材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B
2 A3963-BWRB02 3.96 9.90
3 A3963-BWRB03 7.92 13.86
4 A3963-BWRB04 11.88 17.82
11 1.14 12 5 A3963-BWRB05 15.84 21.78

6 A3963-BWRB06 19.80 25.74
A 7 A3963-BWRB07 23.76 29.70
9.3 3.6
8 A3963-BWRB08 27.72 33.66
9 A3963-BWRB09 31.68 37.62
10 A3963-BWRB10 35.64 41.58
A3963(VH) connector 3.96mm [.156] pitch
11 A3963-BWRB11 39.60 45.54
12 A3963-BWRB12 43.56 49.50
13 A3963-BWRB13 47.52 53.46
14 A3963-BWRB14 51.48 57.42
3.96
A 15 A3963-BWRB15 55.44 61.38
B

材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B
2 A3963-HWV02 3.96 9.90
3 A3963-HWV03 7.92 13.86
4 A3963-HWV04 11.88 17.82
15.8 5 A3963-HWV05 15.84 21.78
6 A3963-HWV06 19.80 25.74
7 A3963-HWV07 23.76 29.70
8 A3963-HWV08 27.72 33.66
9 A3963-HWV09 31.68 37.62
3.6
3.96 10 A3963-HWV10 35.64 41.58
A  1.14
B 9.3 11 A3963-HWV11 39.60 45.54
12 A3963-HWV12 43.56 49.50
13 A3963-HWV13 47.52 53.46
14 A3963-HWV14 51.48 57.42
9.3
15 A3963-HWV15 55.44 61.38

材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B
2 A3963-DHWV02 3.96 9.90
3 A3963-DHWV03 7.92 13.86
4 A3963-DHWV04 11.88 17.82
15.8 5 A3963-DHWV05 15.84 21.78
6 A3963-DHWV06 19.80 25.74
7 A3963-DHWV07 23.76 29.70
8 A3963-DHWV08 27.72 33.66
9 A3963-DHWV09 31.68 37.62
3.6
3.96 10 A3963-DHWV10 35.64 41.58
A 1.5  1.14
B 9.3 11 A3963-DHWV11 39.60 45.54
12 A3963-DHWV12 43.56 49.50
1.2
13 A3963-DHWV13 47.52 53.46
14 A3963-DHWV14 51.48 57.42
3.4 15 A3963-DHWV15 55.44 61.38

144 LIANHE ELECTRONICS CO.,LTD.
