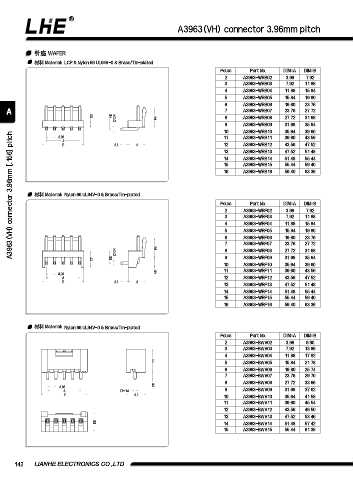

A3963(VH) connector 3.96mm pitch

针座 WAFER
材料 Material: LCP & Nylon 66 UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B
2 A3963-WRB02 3.96 7.92
3 A3963-WRB03 7.92 11.88
4 A3963-WRB04 11.88 15.84
5 A3963-WRB05 15.84 19.80
6 A3963-WRB06 19.80 23.76
A 7 A3963-WRB07 23.76 27.72
3.2 4.5 1.14 9.4 8 A3963-WRB08 27.72 31.68

9 A3963-WRB09 31.68 35.64
10 A3963-WRB10 35.64 39.60
A3963(VH) connector 3.96mm [.156] pitch
3.96 11 A3963-WRB11 39.60 43.56
A
B 3.6 8 12 A3963-WRB12 43.56 47.52
13 A3963-WRB13 47.52 51.48
14 A3963-WRB14 51.48 55.44
15 A3963-WRB15 55.44 59.40
16 A3963-WRB16 59.40 63.36

材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B
2 A3963-WRF02 3.96 7.92
3 A3963-WRF03 7.92 11.88
4 A3963-WRF04 11.88 15.84
5 A3963-WRF05 15.84 19.80
6 A3963-WRF06 19.80 23.76
7 A3963-WRF07 23.76 27.72
1.14 9.4 8 A3963-WRF08 27.72 31.68
 9 A3963-WRF09 31.68 35.64
7.7 6.3
10 A3963-WRF10 35.64 39.60
11 A3963-WRF11 39.60 43.56
3.96 4.5
A 12 A3963-WRF12 43.56 47.52
B 3.6 8
13 A3963-WRF13 47.52 51.48
14 A3963-WRF14 51.48 55.44
15 A3963-WRF15 55.44 59.40
16 A3963-WRF16 59.40 63.36

材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B
2 A3963-BWV02 3.96 9.90
3 A3963-BWV03 7.92 13.86
4 A3963-BWV04 11.88 17.82
11 5 A3963-BWV05 15.84 21.78
6 A3963-BWV06 19.80 25.74
7 A3963-BWV07 23.76 29.70
8 A3963-BWV08 27.72 33.66
3.6
3.96
A  1.14 9 A3963-BWV09 31.68 37.62
B 9.3 10 A3963-BWV10 35.64 41.58
11 A3963-BWV11 39.60 45.54
12 A3963-BWV12 43.56 49.50
13 A3963-BWV13 47.52 53.46
9.3 14 A3963-BWV14 51.48 57.42
15 A3963-BWV15 55.44 61.38

142 LIANHE ELECTRONICS CO.,LTD.
