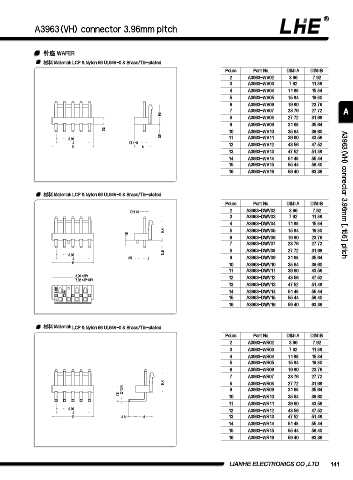

A3963(VH) connector 3.96mm pitch

针座 WAFER
材料 Material: LCP & Nylon 66 UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B
2 A3963-WV02 3.96 7.92
3 A3963-WV03 7.92 11.88
4 A3963-WV04 11.88 15.84
5 A3963-WV05 15.84 19.80
6 A3963-WV06 19.80 23.76
7 A3963-WV07 23.76 27.72 A
9.4
8 A3963-WV08 27.72 31.68
9 A3963-WV09 31.68 35.64
3.2 10 A3963-WV10 35.64 39.60
3.6
3.96 11 A3963-WV11 39.60 43.56
A  1.14
B 8 12 A3963-WV12 43.56 47.52
13 A3963-WV13 47.52 51.48
14 A3963-WV14 51.48 55.44
15 A3963-WV15 55.44 59.40
16 A3963-WV16 59.40 63.36

材料 Material: LCP & Nylon 66 UL94V-0 & Brass/Tin-plated A3963(VH) connector 3.96mm [.156] pitch
Poles Part No. DIM=A DIM=B
2 A3963-DWV02 3.96 7.92
 1.14
3 A3963-DWV03 7.92 11.88
4 A3963-DWV04 11.88 15.84
9.4 5 A3963-DWV05 15.84 19.80
1.6
6 A3963-DWV06 19.80 23.76
7 A3963-DWV07 23.76 27.72
8 A3963-DWV08 27.72 31.68
3.96 3.6
A  1 3 9 A3963-DWV09 31.68 35.64
B
10 A3963-DWV10 35.64 39.60
11 A3963-DWV11 39.60 43.56
3.96 <2P> 12 A3963-DWV12 43.56 47.52
7.92 <3P~NP>
13 A3963-DWV13 47.52 51.48
14 A3963-DWV14 51.48 55.44
15 A3963-DWV15 55.44 59.40
16 A3963-DWV16 59.40 63.36

材料 Material: LCP & Nylon 66 UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B
2 A3963-WR02 3.96 7.92
3 A3963-WR03 7.92 11.88
4 A3963-WR04 11.88 15.84
5 A3963-WR05 15.84 19.80
6 A3963-WR06 19.80 23.76
7 A3963-WR07 23.76 27.72
9.4 8 A3963-WR08 27.72 31.68
1.14 9 A3963-WR09 31.68 35.64
7.8  10 A3963-WR10 35.64 39.60
11 A3963-WR11 39.60 43.56
3.96 12 A3963-WR12 43.56 47.52
A
B 3.6 8 13 A3963-WR13 47.52 51.48
14 A3963-WR14 51.48 55.44
15 A3963-WR15 55.44 59.40
16 A3963-WR16 59.40 63.36

LIANHE ELECTRONICS CO.,LTD. 141
