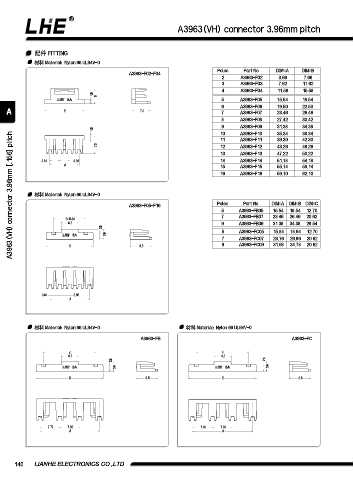

A3963(VH) connector 3.96mm pitch

配件 FITTING
材料 Material: Nylon 66 UL94V-0

A3963-F02~F04 Poles Part No. DIM=A DIM=B
2 A3963-F02 3.66 7.66
3 A3963-F03 7.62 11.62
4 A3963-F04 11.58 15.58
1.9 6
5 A3963-F05 15.54 18.54
6 A3963-F06 19.50 22.50
A B 7.3 7 A3963-F07 23.46 26.46
8 A3963-F08 27.42 30.42
9 A3963-F09 31.38 34.38
1.5
10 A3963-F10 35.34 38.34
A3963(VH) connector 3.96mm [.156] pitch
11 A3963-F11 39.30 42.30
7.3 12 A3963-F12 43.26 46.26
13 A3963-F13 47.22 50.22
3.81 3.96 14 A3963-F14 51.18 54.18
A
15 A3963-F15 55.14 58.14
16 A3963-F16 59.10 62.10

材料 Material: Nylon 66 UL94V-0

A3963-F05~F16 Poles Part No. DIM=A DIM=B DIM=C
5 A3963-FB05 15.54 18.54 12.70
7 A3963-FB07 23.46 26.46 20.62
B-5.84
6.8 9 A3963-FB09 31.38 34.38 28.54
2.8
5 A3963-FC05 15.84 18.94 12.70
3.9
7 A3963-FC07 23.76 26.86 20.62
B 8.5 9 A3963-FC09 31.68 34.78 20.62

3.81 3.96
A

材料 Material: Nylon 66 UL94V-0 材料 Material: Nylon 66 UL94V-0
A3963-FB A3963-FC

C C
6.8 6.8
2.8 2.8
3.9 3.9
B 8.5 B 8.5

7.77 7.92 7.92 7.92
A A

140 LIANHE ELECTRONICS CO.,LTD.
