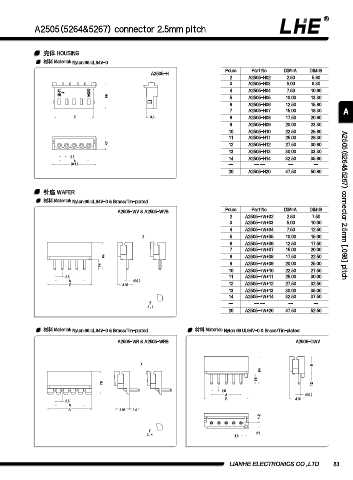

A2505(5264&5267) connector 2.5mm pitch

壳体 HOUSING
材料 Material: Nylon 66 UL94V-0

A2505-H Poles Part No. DIM=A DIM=B
2 A2505-H02 2.50 5.80
3 A2505-H03 5.00 8.30
4 A2505-H04 7.50 10.80
8.9 5 A2505-H05 10.00 13.30
6 A2505-H06 12.50 15.80
7 A2505-H07 15.00 18.30 A
B 3.3 8 A2505-H08 17.50 20.80
9 A2505-H09 20.00 23.30
10 A2505-H10 22.50 25.80
11 A2505-H11 25.00 28.30
4.7 12 A2505-H12 27.50 30.80
13 A2505-H13 30.00 33.30
2.5 14 A2505-H14 32.50 35.80
A
B+1.6 -- -- -- -- --
20 A2505-H20 47.50 50.80

针座 WAFER
材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated A2505(5264&5267) connector 2.5mm [.098] pitch
A2505-WV & A2505-WVB Poles Part No. DIM=A DIM=B
2 A2505-*W*02 2.50 7.50
3 A2505-*W*03 5.00 10.00
4 A2505-*W*04 7.50 12.50
Z 5 A2505-*W*05 10.00 15.00
6 A2505-*W*06 12.50 17.50
7 A2505-*W*07 15.00 20.00
9.4 8 A2505-*W*08 17.50 22.50
3.4 9 A2505-*W*09 20.00 25.00
10 A2505-*W*10 22.50 27.50
2.5 11 A2505-*W*11 25.00 30.00
A 0.7
B 4.95 12 A2505-*W*12 27.50 32.50
13 A2505-*W*13 30.00 35.00
14 A2505-*W*14 32.50 37.50
Z -- -- -- -- --
3 : 1
20 A2505-*W*20 47.50 52.50

材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated 材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated
A2505-WR & A2505-WRB A2505-DWV

Y
6
9.4
3.4
7.9 1.2
2.5
A 0.7
B 4.95
2.5
A
B 4.95 3.4
1.2
Y
3 : 1 1.8 1
