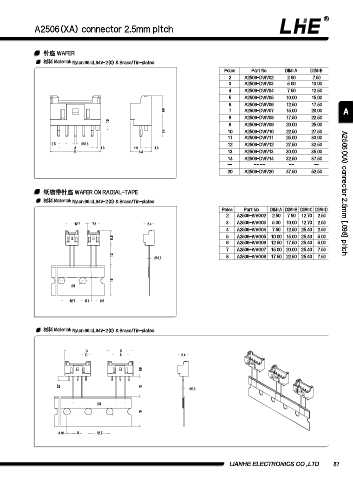

A2506(XA) connector 2.5mm pitch

针座 WAFER
材料 Material: Nylon 66 UL94V-2(0) & Brass/Tin-plated
Poles Part No. DIM=A DIM=B
2 A2506-DWV02 2.50 7.50
3 A2506-DWV03 5.00 10.00
4 A2506-DWV04 7.50 12.50
5 A2506-DWV05 10.00 15.00
6 A2506-DWV06 12.50 17.50
8.8 7 A2506-DWV07 15.00 20.00 A
8 A2506-DWV08 17.50 22.50
1.5
9 A2506-DWV09 20.00 25.00
3.4 10 A2506-DWV10 22.50 27.50
11 A2506-DWV11 25.00 30.00
2.5 0.6 12 A2506-DWV12 27.50 32.50
A 1.6 1.6 1.6
B 6.4 13 A2506-DWV13 30.00 35.00
14 A2506-DWV14 32.50 37.50
-- -- -- -- --
20 A2506-DWV20 47.50 52.50

纸编带针座 WAFER ON RADIAL-TAPE A2506(XA) connector 2.5mm [.098] pitch
材料 Material: Nylon 66 UL94V-2(0) & Brass/Tin-plated
Poles Part No. DIM=A DIM=B DIM=C DIM=D
2 A2506-WVG02 2.50 7.50 12.70 2.50
12.7 7.5 6.4 3 A2506-WVG03 5.00 10.00 12.70 2.50
4 A2506-WVG04 7.50 12.50 25.40 2.50
8.8 5 A2506-WVG05 10.00 15.00 25.40 5.00
6 A2506-WVG06 12.50 17.50 25.40 5.00
7 A2506-WVG07 15.00 20.00 25.40 7.50
12 8 A2506-WVG08 17.50 22.50 25.40 7.50
0.6

18
4

12.7 5.1 2.5

材料 Material: Nylon 66 UL94V-2(0) & Brass/Tin-plated

C B
D A 6.4

8.8

2.7 12
0.6

4
18

3.85 5 12.7

LIANHE ELECTRONICS CO.,LTD. 87
