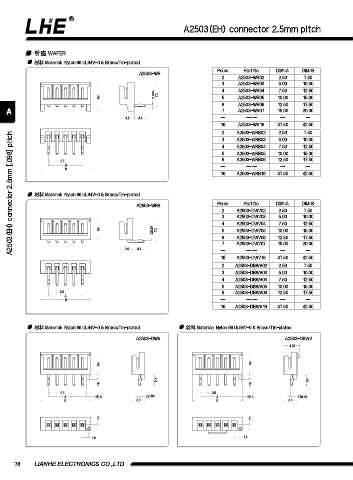

A2503(EH) connector 2.5mm pitch

针座 WAFER
材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated

A2503-WR Poles Part No. DIM=A DIM=B
2 A2503-WR02 2.50 7.50
3 A2503-WR03 5.00 10.00
4 A2503-WR04 7.50 12.50
0.64 7.1
8.4  5 A2503-WR05 10.00 15.00
6 A2503-WR06 12.50 17.50
A 7 A2503-WR07 15.00 20.00
4.2 3.4 -- -- -- -- --
16 A2503-WR16 37.50 42.50
2 A2503-WRB02 2.50 7.50
A2503(EH) connector 2.5mm [.098] pitch
3 A2503-WRB03 5.00 10.00
4 A2503-WRB04 7.50 12.50
5 A2503-WRB05 10.00 15.00
6 A2503-WRB06 12.50 17.50
2.5
A -- -- -- -- --
B
16 A2503-WRB16 37.50 42.50

材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated

A2503-WRB Poles Part No. DIM=A DIM=B
2 A2503-DWV02 2.50 7.50
3 A2503-DWV03 5.00 10.00
4 A2503-DWV04 7.50 12.50
6.4 0.64 7.1 5 A2503-DWV05 10.00 15.00

6 A2503-DWV06 12.50 17.50
7 A2503-DWV07 15.00 20.00
3.9 3.4 -- -- -- -- --
16 A2503-DWV16 37.50 42.50
2 A2503-DBWV02 2.50 7.50
3 A2503-DBWV03 5.00 10.00
4 A2503-DBWV04 7.50 12.50
5 A2503-DBWV05 10.00 15.00
2.5 6 A2503-DBWV06 12.50 17.50
A
B -- -- -- -- --
16 A2503-DBWV16 37.50 42.50

材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated 材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated
A2503-DWV A2503-DBWV
4.65

6.4 6.4

3.4 3.4
1.6 1.6
2.5 2.5
A 0.9  0.64 A 0.9  0.64
B 3.9 B 3.9

1.1 1.1

1.8 1.8

78 LIANHE ELECTRONICS CO.,LTD.
