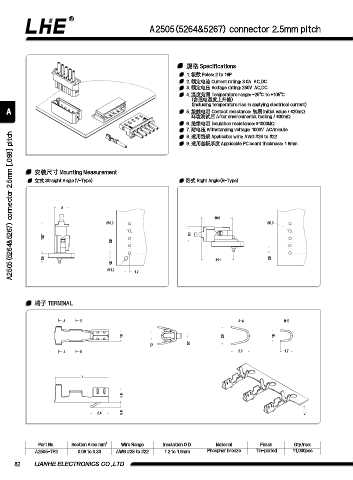

A2505(5264&5267) connector 2.5mm pitch

规格 Specifications
1. 极数 Poles: 2 to 16P
2. 额定电流 Current rating: 3.0A AC,DC
3. 额定电压 Voltage rating: 250V AC,DC
4. 温度范围 Temperature range: -25℃ to +105℃
(含通电温度上升值)
(Including temperature rise in applying electrical current)
A 5. 接触电阻 Contact resistance: 初期 Initial value / ≤20mΩ
环境测试后 After environmental testing / ≤30mΩ
6. 绝缘电阻 Insulation resistance: ≥1000MΩ
7. 耐电压 Withstanding voltage: 1000V AC/minute
A2505(5264&5267) connector 2.5mm [.098] pitch
8. 适⽤线规 Applicable wire: AWG #28 to #22
9. 适⽤基板厚度 Applicable PC board thickness: 1.6mm

安装尺⼨ Mounting Measurement
⽴式 Straight Angle(V-Type) 卧式 Right Angle(R-Type)

5

10.6
0.9 0.9
5.1
10.7
2.5

3.4 11.1 2.5
1.8
1.2
1.2

端⼦ TERMINAL

A B A-A B-B

1.5 2.5 1.6
1.1 0.7
A B 2.3 1.7

7

1.9

2.4 0.6

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
A2505-TP2 0.08 to 0.33 AWG #28 to #22 1.2 to 1.9mm Phosphor bronze Tin-plated 11,000pcs
