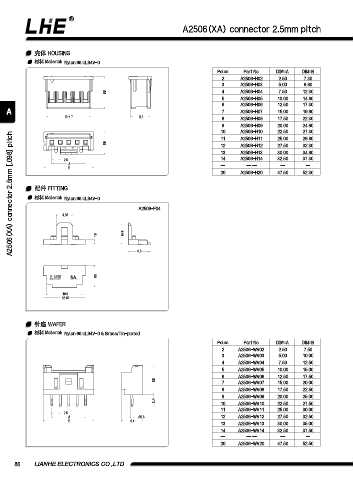

A2506(XA) connector 2.5mm pitch
壳体 HOUSING
材料 Material: Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B
2 A2506-H02 2.50 7.30
3 A2506-H03 5.00 9.80
9.5 4 A2506-H04 7.50 12.30
5 A2506-H05 10.00 14.80
6 A2506-H06 12.50 17.30
A 7 A2506-H07 15.00 19.80
B-1.7 5.8 8 A2506-H08 17.50 22.30
9 A2506-H09 20.00 24.80
10 A2506-H10 22.50 27.30
A2506(XA) connector 2.5mm [.098] pitch
11 A2506-H11 25.00 29.80
6.9 12 A2506-H12 27.50 32.30
13 A2506-H13 30.00 34.80
14 A2506-H14 32.50 37.30
2.5
A -- -- -- -- --
B
20 A2506-H20 47.50 52.30
配件 FITTING
材料 Material: Nylon 66 UL94V-0
A2506-F04
4.95
1.5 6.45
6.5
6.5
10.6
12.45
针座 WAFER
材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B
2 A2506-WV02 2.50 7.50
3 A2506-WV03 5.00 10.00
4 A2506-WV04 7.50 12.50
5 A2506-WV05 10.00 15.00
6 A2506-WV06 12.50 17.50
8.8 7 A2506-WV07 15.00 20.00
8 A2506-WV08 17.50 22.50
9 A2506-WV09 20.00 25.00
3.4 10 A2506-WV10 22.50 27.50
11 A2506-WV11 25.00 30.00
2.5
A 0.6 12 A2506-WV12 27.50 32.50
B 6.4
13 A2506-WV13 30.00 35.00
14 A2506-WV14 32.50 37.50
-- -- -- -- --
20 A2506-WV20 47.50 52.50
