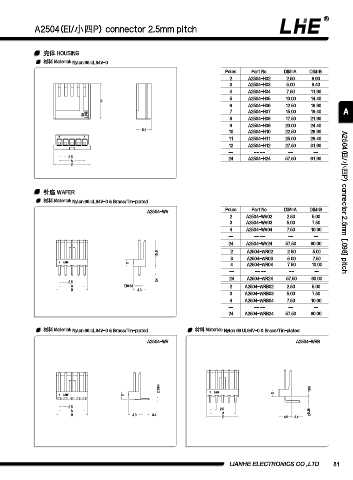

A2504(EI/⼩四P) connector 2.5mm pitch

壳体 HOUSING
材料 Material: Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B
2 A2504-H02 2.50 6.90
3 A2504-H03 5.00 9.40
4 A2504-H04 7.50 11.90
5 A2504-H05 10.00 14.40
14
6 A2504-H06 12.50 16.90
7 A2504-H07 15.00 19.40 A
8 A2504-H08 17.50 21.90
9 A2504-H09 20.00 24.40
5.8
10 A2504-H10 22.50 26.90
11 A2504-H11 25.00 29.40
12 A2504-H12 27.50 31.90
-- -- -- -- --
2.5
A 24 A2504-H24 57.50 61.90
B

针座 WAFER
材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated A2504(EI/⼩四P) connector 2.5mm [.098] pitch
A2504-WV Poles Part No. DIM=A DIM=B
2 A2504-WV02 2.50 5.00
3 A2504-WV03 5.00 7.50
4 A2504-WV04 7.50 10.00
-- -- -- -- --
24 A2504-WV24 57.50 60.00
10.5 2 A2504-WR02 2.50 5.00
3 A2504-WR03 5.00 7.50
3
4 A2504-WR04 7.50 10.00
-- -- -- -- --
3.4 24 A2504-WR24 57.50 60.00
2.5
A  0.64 2 A2504-WRB02 2.50 5.00
B 4.9
3 A2504-WRB03 5.00 7.50
4 A2504-WRB04 7.50 10.00
-- -- -- -- --
24 A2504-WRB24 57.50 60.00

材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated 材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated
A2504-WR A2504-WRB

0.64 1.65
 3
3
2.5
A 2.5 0.64
B 4.9 3.4 A 
B 4.9 3.4

LIANHE ELECTRONICS CO.,LTD. 81
