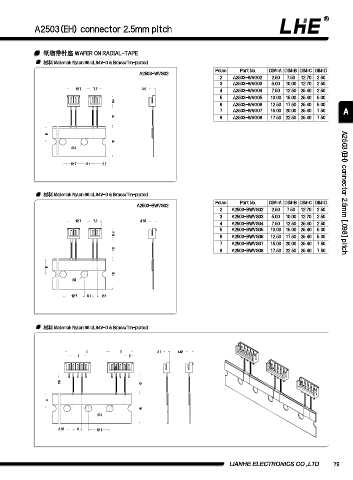

A2503(EH) connector 2.5mm pitch

纸编带针座 WAFER ON RADIAL-TAPE
材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated

A2503-WVG02 Poles Part No. DIM=A DIM=B DIM=C DIM=D
2 A2503-WVG02 2.50 7.50 12.70 2.50
3 A2503-WVG03 5.00 10.00 12.70 2.50
12.7 7.5 3.9
4 A2503-WVG04 7.50 12.50 25.40 2.50
5 A2503-WVG05 10.00 15.00 25.40 5.00
6.4
6 A2503-WVG06 12.50 17.50 25.40 5.00
7 A2503-WVG07 15.00 20.00 25.40 7.50 A
12 8 A2503-WVG08 17.50 22.50 25.40 7.50

9
18
4

12.7 5.1 2.5

材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated A2503(EH) connector 2.5mm [.098] pitch

A2503-BWVG02 Poles Part No. DIM=A DIM=B DIM=C DIM=D
2 A2503-BWVG02 2.50 7.50 12.70 2.50
3 A2503-BWVG03 5.00 10.00 12.70 2.50
12.7 7.5 4.65
4 A2503-BWVG04 7.50 12.50 25.40 2.50
5 A2503-BWVG05 10.00 15.00 25.40 5.00
6.4
6 A2503-BWVG06 12.50 17.50 25.40 5.00
7 A2503-BWVG07 15.00 20.00 25.40 7.50
12 8 A2503-BWVG08 17.50 22.50 25.40 7.50

9
18
4

12.7 5.1 2.5

材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated

C B 3.9 4.65
A D
6.4

2.8 12

9
18
4

3.85 5 12.7
