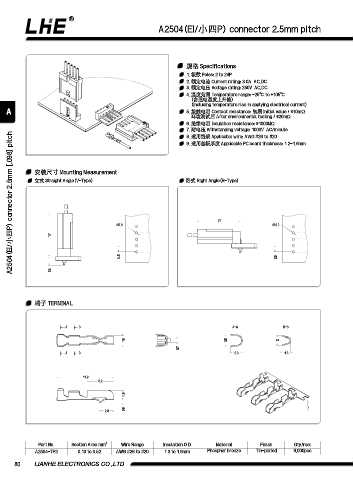

A2504(EI/⼩四P) connector 2.5mm pitch

规格 Specifications
1. 极数 Poles: 2 to 24P
2. 额定电流 Current rating: 3.0A AC,DC
3. 额定电压 Voltage rating: 250V AC,DC
4. 温度范围 Temperature range: -25℃ to +105℃
(含通电温度上升值)
(Including temperature rise in applying electrical current)
A 5. 接触电阻 Contact resistance: 初期 Initial value / ≤10mΩ
环境测试后 After environmental testing / ≤20mΩ
6. 绝缘电阻 Insulation resistance: ≥1000MΩ
7. 耐电压 Withstanding voltage: 1000V AC/minute
A2504(EI/⼩四P) connector 2.5mm [.098] pitch
8. 适⽤线规 Applicable wire: AWG #26 to #20
9. 适⽤基板厚度 Applicable PC board thickness: 1.2~1.6mm

安装尺⼨ Mounting Measurement
⽴式 Straight Angle(V-Type) 卧式 Right Angle(R-Type)

17
0.9 0.9
17

2.5 2.5
3.4

端⼦ TERMINAL

A B A-A B-B

1.8 2.5 2
0.7
A B 2.3 1.8

11.2
5.2

1.9

0.6
2.8

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
A2504-TP2 0.13 to 0.52 AWG #26 to #20 1.3 to 1.9mm Phosphor bronze Tin-plated 9,000pcs
