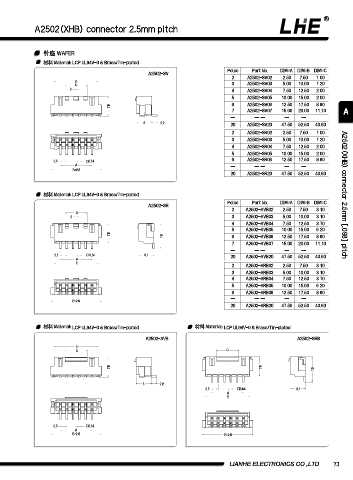

A2502(XHB) connector 2.5mm pitch

针座 WAFER
材料 Material: LCP UL94V-0 & Brass/Tin-plated

A2502-SV Poles Part No. DIM=A DIM=B DIM=C
2 A2502-SV02 2.50 7.50 1.00
B
C 3 A2502-SV03 5.00 10.00 1.20
2
4 A2502-SV04 7.50 12.50 2.00
5 A2502-SV05 10.00 15.00 2.00
7.9 6 A2502-SV06 12.50 17.50 8.60
7 A2502-SV07 15.00 20.00 11.10 A
-- -- -- -- --
6 2.2
20 A2502-SV20 47.50 52.50 43.60
2 A2502-SR02 2.50 7.50 1.00
3 A2502-SR03 5.00 10.00 1.20
4 A2502-SR04 7.50 12.50 2.00
5 A2502-SR05 10.00 15.00 2.00
6 A2502-SR06 12.50 17.50 8.60
2.5  0.64
A -- -- -- -- --
B+2.5
20 A2502-SR20 47.50 52.50 43.60

材料 Material: LCP UL94V-0 & Brass/Tin-plated A2502(XHB) connector 2.5mm [.098] pitch

A2502-SR Poles Part No. DIM=A DIM=B DIM=C
2 A2502-SVB02 2.50 7.50 3.10
C
2 3 A2502-SVB03 5.00 10.00 3.10
4 A2502-SVB04 7.50 12.50 3.70
5 A2502-SVB05 10.00 15.00 6.20
7.8
10 6 A2502-SVB06 12.50 17.50 8.60
7 A2502-SVB07 15.00 20.00 11.10
-- -- -- -- --
2.5  0.64 6.1 20 A2502-SVB20 47.50 52.50 43.60
A
B
2 A2502-SRB02 2.50 7.50 3.10
3 A2502-SRB03 5.00 10.00 3.10
4 A2502-SRB04 7.50 12.50 3.70
5 A2502-SRB05 10.00 15.00 6.20
6 A2502-SRB06 12.50 17.50 8.60
-- -- -- -- --
B+2.5
20 A2502-SRB20 47.50 52.50 43.60

材料 Material: LCP UL94V-0 & Brass/Tin-plated 材料 Material: LCP UL94V-0 & Brass/Tin-plated
A2502-SVB A2502-SRB

B
C C

7.9 7.8
10
6 2.2
2.5  0.64 6.1
A
B

2.5  0.64
A
B+2.5 B+2.5
