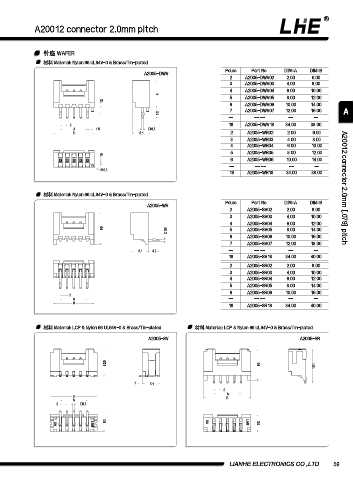

A20012 connector 2.0mm pitch

针座 WAFER
材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated

A2005-DWV Poles Part No. DIM=A DIM=B
2 A2005-DWV02 2.00 6.00
3 A2005-DWV03 4.00 8.00
4 A2005-DWV04 6.00 10.00
8
5 A2005-DWV05 8.00 12.00
1.2
6 A2005-DWV06 10.00 14.00
7 A2005-DWV07 12.00 16.00 A
3.2
-- -- -- -- --
2 18 A2005-DWV18 34.00 38.00
A 1.5  0.5
B 5.1 2 A2005-WR02 2.00 6.00
3 A2005-WR03 4.00 8.00
4 A2005-WR04 6.00 10.00
5 A2005-WR05 8.00 12.00
1.5
6 A2005-WR06 10.00 14.00
-- -- -- -- --
0.8
18 A2005-WR18 34.00 38.00

材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated A20012 connector 2.0mm [.079] pitch

A2005-WR Poles Part No. DIM=A DIM=B
2 A2005-SV02 2.00 8.00
3 A2005-SV03 4.00 10.00
4 A2005-SV04 6.00 12.00
9.5 0.5 5 A2005-SV05 8.00 14.00

6 A2005-SV06 10.00 16.00
7 A2005-SV07 12.00 18.00
5.1 3.2 -- -- -- -- --
18 A2005-SV18 34.00 40.00
2 A2005-SR02 2.00 8.00
3 A2005-SR03 4.00 10.00
4 A2005-SR04 6.00 12.00
5 A2005-SR05 8.00 14.00
6 A2005-SR06 10.00 16.00
2
A -- -- -- -- --
B
18 A2005-SR18 34.00 40.00

材料 Material: LCP & Nylon 66 UL94V-0 & Brass/Tin-plated 材料 Material: LCP & Nylon 66 UL94V-0 & Brass/Tin-plated
A2005-SV A2005-SR

8.25 9.3 10.1

1 5.1
2
A
B B
A
2  0.5
6.1 5.2

LIANHE ELECTRONICS CO.,LTD. 59
