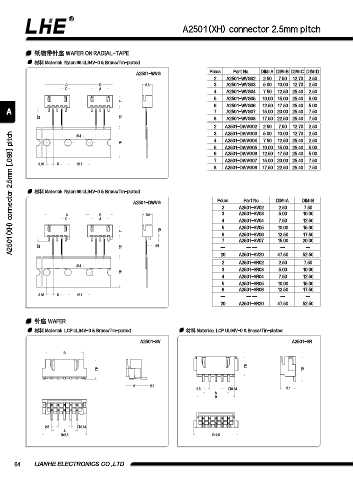

A2501(XH) connector 2.5mm pitch

纸编带针座 WAFER ON RADIAL-TAPE
材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated

A2501-WVG Poles Part No. DIM=A DIM=B DIM=C DIM=D
2 A2501-WVG02 2.50 7.50 12.70 2.50
C B 5.8 3 A2501-WVG03 5.00 10.00 12.70 2.50
D A
4 A2501-WVG04 7.50 12.50 25.40 2.50
5 A2501-WVG05 10.00 15.00 25.40 5.00
7
6 A2501-WVG06 12.50 17.50 25.40 5.00
A 7 A2501-WVG07 15.00 20.00 25.40 7.50
2.7 12 8 A2501-WVG08 17.50 22.50 25.40 7.50
2 A2501-DWVG02 2.50 7.50 12.70 2.50
3 A2501-DWVG03 5.00 10.00 12.70 2.50
A2501(XH) connector 2.5mm [.098] pitch
4
4 A2501-DWVG04 7.50 12.50 25.40 2.50
18
5 A2501-DWVG05 10.00 15.00 25.40 5.00
6 A2501-DWVG06 12.50 17.50 25.40 5.00
7 A2501-DWVG07 15.00 20.00 25.40 7.50
3.85 5 12.7
8 A2501-DWVG08 17.50 22.50 25.40 7.50

材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated
A2501-DWVG Poles Part No. DIM=A DIM=B
2 A2501-SV02 2.50 7.50
C B 5.8 3 A2501-SV03 5.00 10.00
D A
4 A2501-SV04 7.50 12.50
5 A2501-SV05 10.00 15.00
1.5
7
6 A2501-SV06 12.50 17.50
7 A2501-SV07 15.00 20.00
2.7 12 1 -- -- -- -- --
20 A2501-SV20 47.50 52.50
2 A2501-SR02 2.50 7.50
4
3 A2501-SR03 5.00 10.00
18
4 A2501-SR04 7.50 12.50
5 A2501-SR05 10.00 15.00
6 A2501-SR06 12.50 17.50
3.85 5 12.7
-- -- -- -- --
20 A2501-SR20 47.50 52.50

针座 WAFER
材料 Material: LCP UL94V-0 & Brass/Tin-plated 材料 Material: LCP UL94V-0 & Brass/Tin-plated
A2501-SV A2501-SR

B

7.8
7.9 10

6 2.2
2.5  0.64 6.1
A
B

2.5  0.64
A
B+2.5 B+2.5

64 LIANHE ELECTRONICS CO.,LTD.
