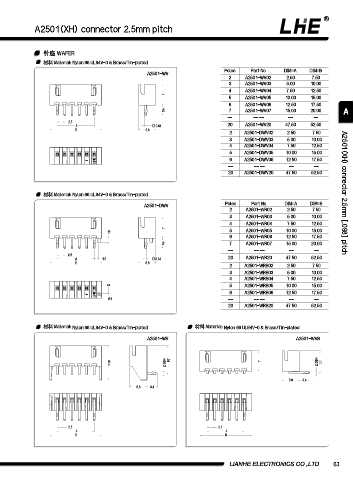

A2501(XH) connector 2.5mm pitch

针座 WAFER
材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated

A2501-WV Poles Part No. DIM=A DIM=B
2 A2501-WV02 2.50 7.50
3 A2501-WV03 5.00 10.00
4 A2501-WV04 7.50 12.50
7
5 A2501-WV05 10.00 15.00
6 A2501-WV06 12.50 17.50
3.4 7 A2501-WV07 15.00 20.00 A
-- -- -- -- --
2.5
A  0.64 20 A2501-WV20 47.50 52.50
B 5.8
2 A2501-DWV02 2.50 7.50
3 A2501-DWV03 5.00 10.00
4 A2501-DWV04 7.50 12.50
5 A2501-DWV05 10.00 15.00
6 A2501-DWV06 12.50 17.50
-- -- -- -- --
20 A2501-DWV20 47.50 52.50

材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated A2501(XH) connector 2.5mm [.098] pitch

A2501-DWV Poles Part No. DIM=A DIM=B
2 A2501-WR02 2.50 7.50
3 A2501-WR03 5.00 10.00
4 A2501-WR04 7.50 12.50
7
1.5 5 A2501-WR05 10.00 15.00
6 A2501-WR06 12.50 17.50
3.4 7 A2501-WR07 15.00 20.00
-- -- -- -- --
2.5
A 1.6  0.64 20 A2501-WR20 47.50 52.50
B 5.8
2 A2501-WRB02 2.50 7.50
3 A2501-WRB03 5.00 10.00
4 A2501-WRB04 7.50 12.50
2 5 A2501-WRB05 10.00 15.00
6 A2501-WRB06 12.50 17.50
1 -- -- -- -- --
20 A2501-WRB20 47.50 52.50

材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated 材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated
A2501-WR A2501-WVB

11.6 0.64 9.7 7 0.64 7.7
 

5.8 3.4
5.8 3.4

2.5 2.5
A A
B B
