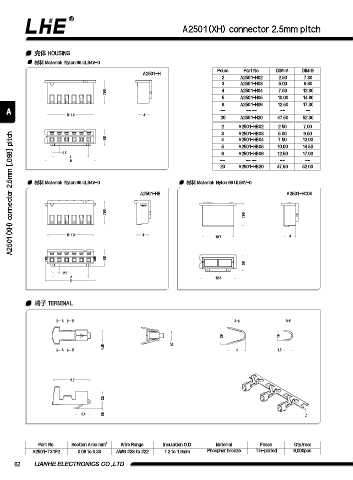

A2501(XH) connector 2.5mm pitch

壳体 HOUSING
材料 Material: Nylon 66 UL94V-0

A2501-H Poles Part No. DIM=A DIM=B
2 A2501-H02 2.50 7.30
3 A2501-H03 5.00 9.80
7.95 4 A2501-H04 7.50 12.30
5 A2501-H05 10.00 14.80
6 A2501-H06 12.50 17.30
A B-1.6 4 -- -- -- -- --
20 A2501-H20 47.50 52.30
2 A2501-HB02 2.50 7.00
3 A2501-HB03 5.00 9.50
A2501(XH) connector 2.5mm [.098] pitch
5.6 4 A2501-HB04 7.50 12.00
5 A2501-HB05 10.00 14.50
2.5 6 A2501-HB06 12.50 17.00
A
B -- -- -- -- --
20 A2501-HB20 47.50 52.00

材料 Material: Nylon 66 UL94V-0 材料 Material: Nylon 66 UL94V-0
A2501-HB A2501-HC04

7.95 7.95

B-1.3 4
10.7 4

5.6
5.6
2.5
A 12.3
B

端⼦ TERMINAL

A B A-A B-B

2.9 1.8
0.7
1.85
A B 3 1.5

6.3

2.2

2.4 0.8

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
A2501-T31P2 0.08 to 0.33 AWG #28 to #22 1.2 to 1.9mm Phosphor bronze Tin-plated 6,000pcs
