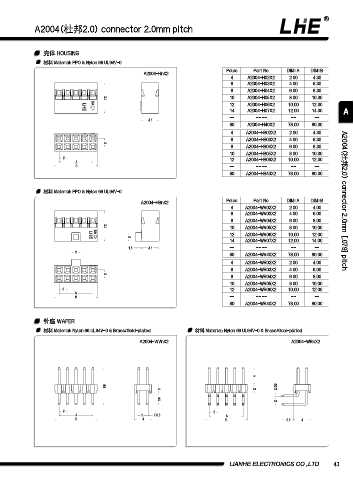

A2004(杜邦2.0) connector 2.0mm pitch

壳体 HOUSING
材料 Material: PPO & Nylon 66 UL94V-0

A2004-HnX2 Poles Part No. DIM=A DIM=B
4 A2004-H02X2 2.00 4.30
6 A2004-H03X2 4.00 6.30
8 A2004-H04X2 6.00 8.30
7.2 10 A2004-H05X2 8.00 10.30
12 A2004-H06X2 10.00 12.30
14 A2004-H07X2 12.00 14.30 A
-- -- -- -- --
4.1
80 A2004-H40X2 78.00 80.30
4 A2004-HB02X2 2.00 4.30
6 A2004-HB03X2 4.00 6.30
2
8 A2004-HB04X2 6.00 8.30
10 A2004-HB05X2 8.00 10.30
2
A 12 A2004-HB06X2 10.00 12.30
B -- -- -- -- --
80 A2004-HB40X2 78.00 80.30

材料 Material: PPO & Nylon 66 UL94V-0
A2004-HBnX2 Poles Part No. DIM=A DIM=B A2004(杜邦2.0) connector 2.0mm [.079] pitch
4 A2004-WV02X2 2.00 4.00
6 A2004-WV03X2 4.00 6.00
8 A2004-WV04X2 6.00 8.00
7.2 10 A2004-WV05X2 8.00 10.00
12 A2004-WV06X2 10.00 12.00
2
14 A2004-WV07X2 12.00 14.00
1.5 4.1 -- -- -- -- --
2 80 A2004-WV40X2 78.00 80.00
4 A2004-WR02X2 2.00 4.00
6 A2004-WR03X2 4.00 6.00
2
8 A2004-WR04X2 6.00 8.00
10 A2004-WR05X2 8.00 10.00
2 12 A2004-WR06X2 10.00 12.00
A
B -- -- -- -- --
80 A2004-WR40X2 78.00 80.00

针座 WAFER
材料 Material: Nylon 66 UL94V-0 & Brass/Gold-plated 材料 Material: Nylon 66 UL94V-0 & Brass/Gold-plated
A2004-WVnX2 A2004-WRnX2

4
8.8 0.5
2 2 
2.8 2
2 2
A 2  0.5 A
B 4 B 2.8 4

LIANHE ELECTRONICS CO.,LTD. 43
