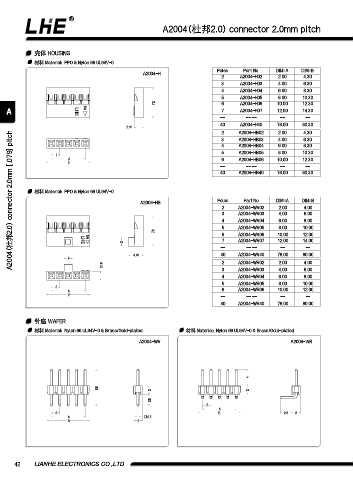

A2004(杜邦2.0) connector 2.0mm pitch

壳体 HOUSING
材料 Material: PPO & Nylon 66 UL94V-0

A2004-H Poles Part No. DIM=A DIM=B
2 A2004-H02 2.00 4.30
3 A2004-H03 4.00 6.30
4 A2004-H04 6.00 8.30
5 A2004-H05 8.00 10.30
7.2 6 A2004-H06 10.00 12.30
A 7 A2004-H07 12.00 14.30
-- -- -- -- --
40 A2004-H40 78.00 80.30
2.16
2 A2004-HB02 2.00 4.30
A2004(杜邦2.0) connector 2.0mm [.079] pitch
3 A2004-HB03 4.00 6.30
4 A2004-HB04 6.00 8.30
5 A2004-HB05 8.00 10.30
2
A 6 A2004-HB06 10.00 12.30
B
-- -- -- -- --
40 A2004-HB40 78.00 80.30

材料 Material: PPO & Nylon 66 UL94V-0
A2004-HB Poles Part No. DIM=A DIM=B
2 A2004-WV02 2.00 4.00
3 A2004-WV03 4.00 6.00
4 A2004-WV04 6.00 8.00
5 A2004-WV05 8.00 10.00
7.2
6 A2004-WV06 10.00 12.00
7 A2004-WV07 12.00 14.00
2
-- -- -- -- --
3.66 40 A2004-WV40 78.00 80.00
2
2.16 2 A2004-WR02 2.00 4.00
3 A2004-WR03 4.00 6.00
4 A2004-WR04 6.00 8.00
5 A2004-WR05 8.00 10.00
2
A 6 A2004-WR06 10.00 12.00
B -- -- -- -- --
40 A2004-WR40 78.00 80.00

针座 WAFER
材料 Material: Nylon 66 UL94V-0 & Brass/Gold-plated 材料 Material: Nylon 66 UL94V-0 & Brass/Gold-plated
A2004-WV A2004-WR

4
8.8
2 2
2.8
2
A
2 B 2.8 2
A  0.5
B 2

42 LIANHE ELECTRONICS CO.,LTD.
