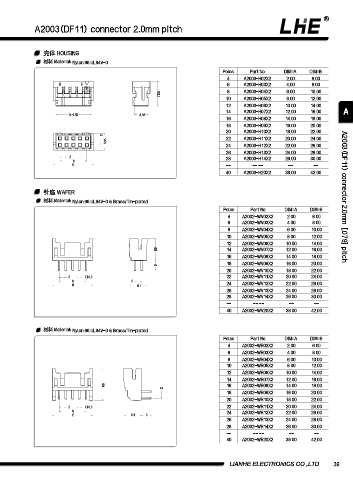

A2003(DF11) connector 2.0mm pitch

壳体 HOUSING
材料 Material: Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B
4 A2003-H02X2 2.00 6.00
6 A2003-H03X2 4.00 8.00
8 A2003-H04X2 6.00 10.00
7.55
10 A2003-H05X2 8.00 12.00
12 A2003-H06X2 10.00 14.00
14 A2003-H07X2 12.00 16.00 A
B-1.55 4.05
16 A2003-H08X2 14.00 18.00
18 A2003-H09X2 16.00 20.00
20 A2003-H10X2 18.00 22.00
2
22 A2003-H11X2 20.00 24.00
5.05 24 A2003-H12X2 22.00 26.00
26 A2003-H13X2 24.00 28.00
2 28 A2003-H14X2 26.00 30.00
A
B -- -- -- -- --
40 A2003-H20X2 38.00 42.00

针座 WAFER
材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated A2003(DF11) connector 2.0mm [.079] pitch
Poles Part No. DIM=A DIM=B
4 A2002-WV02X2 2.00 6.00
6 A2002-WV03X2 4.00 8.00
8 A2002-WV04X2 6.00 10.00
10 A2002-WV05X2 8.00 12.00
12 A2002-WV06X2 10.00 14.00
6.5 14 A2002-WV07X2 12.00 16.00
16 A2002-WV08X2 14.00 18.00
18 A2002-WV09X2 16.00 20.00
3
20 A2002-WV10X2 18.00 22.00
2  0.5 22 A2002-WV11X2 20.00 24.00
A 2
B 5.1 24 A2002-WV12X2 22.00 26.00
26 A2002-WV13X2 24.00 28.00
28 A2002-WV14X2 26.00 30.00
-- -- -- -- --
40 A2002-WV20X2 38.00 42.00

材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B
4 A2002-WR02X2 2.00 6.00
6 A2002-WR03X2 4.00 8.00
8 A2002-WR04X2 6.00 10.00
10 A2002-WR05X2 8.00 12.00
12 A2002-WR06X2 10.00 14.00
14 A2002-WR07X2 12.00 16.00
9.5 16 A2002-WR08X2 14.00 18.00
2
18 A2002-WR09X2 16.00 20.00
20 A2002-WR10X2 18.00 22.00
2  0.5 22 A2002-WR11X2 20.00 24.00
A 24 A2002-WR12X2 22.00 26.00
B 5.1 3
26 A2002-WR13X2 24.00 28.00
28 A2002-WR14X2 26.00 30.00
-- -- -- -- --
40 A2002-WR20X2 38.00 42.00
