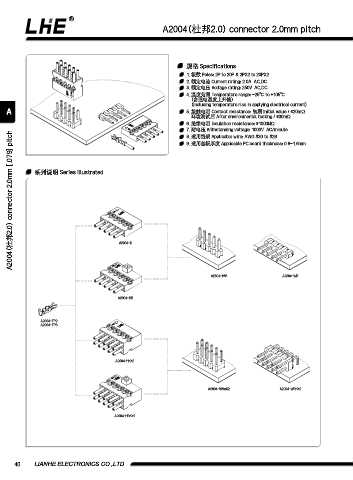

A2004(杜邦2.0) connector 2.0mm pitch

规格 Specifications
1. 极数 Poles: 2P to 20P & 2PX2 to 20PX2
2. 额定电流 Current rating: 2.0A AC,DC
3. 额定电压 Voltage rating: 250V AC,DC
4. 温度范围 Temperature range: -25℃ to +105℃
(含通电温度上升值)
(Including temperature rise in applying electrical current)
A 5. 接触电阻 Contact resistance: 初期 Initial value / ≤20mΩ
环境测试后 After environmental testing / ≤30mΩ
6. 绝缘电阻 Insulation resistance: ≥1000MΩ
7. 耐电压 Withstanding voltage: 1000V AC/minute
A2004(杜邦2.0) connector 2.0mm [.079] pitch
8. 适⽤线规 Applicable wire: AWG #30 to #26
9. 适⽤基板厚度 Applicable PC board thickness: 0.8~1.6mm

系列说明 Series illustrated

A2004-H

A2004-WV A2004-WR

A2004-HB

A2004-TP2
A2004-TP8

A2004-HnX2

A2004-WVnX2 A2004-WRnX2

A2004-HBnX2

40 LIANHE ELECTRONICS CO.,LTD.
