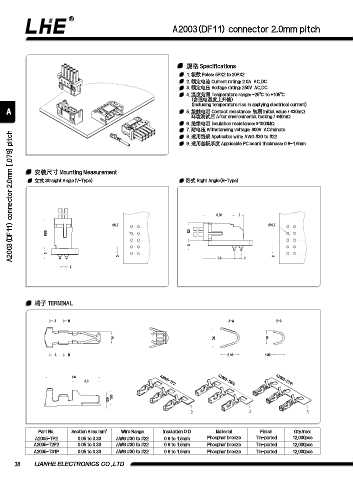

A2003(DF11) connector 2.0mm pitch

规格 Specifications
1. 极数 Poles: 5PX2 to 20PX2
2. 额定电流 Current rating: 2.0A AC,DC
3. 额定电压 Voltage rating: 250V AC,DC
4. 温度范围 Temperature range: -25℃ to +105℃
(含通电温度上升值)
(Including temperature rise in applying electrical current)
A 5. 接触电阻 Contact resistance: 初期 Initial value / ≤30mΩ
环境测试后 After environmental testing / ≤40mΩ
6. 绝缘电阻 Insulation resistance: ≥1000MΩ
7. 耐电压 Withstanding voltage: 800V AC/minute
A2003(DF11) connector 2.0mm [.079] pitch
8. 适⽤线规 Applicable wire: AWG #30 to #22
9. 适⽤基板厚度 Applicable PC board thickness: 0.8~1.6mm

安装尺⼨ Mounting Measurement
⽴式 Straight Angle(V-Type) 卧式 Right Angle(R-Type)

9.05 3
0.7 0.7
9.05 5.2

3
3
2 2
9.3 2
2

端⼦ TERMINAL

A B A-A B-B

1.4 2.4 1.6

A B 2.15 1.35

6.5
3.3 A2005-TP2 A2005-T2P2 A2005-T31P

1.25 1.85

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
A2005-TP2 0.05 to 0.33 AWG #30 to #22 0.9 to 1.5mm Phosphor bronze Tin-plated 12,000pcs
A2005-T2P2 0.05 to 0.33 AWG #30 to #22 0.9 to 1.5mm Phosphor bronze Tin-plated 12,000pcs
A2005-T31P 0.05 to 0.33 AWG #30 to #22 0.9 to 1.5mm Phosphor bronze Tin-plated 12,000pcs
