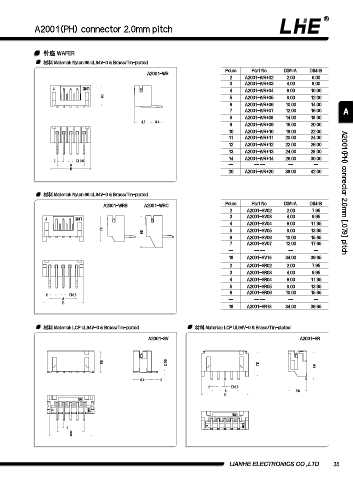

A2001(PH) connector 2.0mm pitch

针座 WAFER
材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated

A2001-WR Poles Part No. DIM=A DIM=B
2 A2001-WR*02 2.00 6.00
3 A2001-WR*03 4.00 8.00
4 A2001-WR*04 6.00 10.00
6.1 5 A2001-WR*05 8.00 12.00
6 A2001-WR*06 10.00 14.00
7 A2001-WR*07 12.00 16.00 A
8 A2001-WR*08 14.00 18.00
4.8 3.4
9 A2001-WR*09 16.00 20.00
10 A2001-WR*10 18.00 22.00
11 A2001-WR*11 20.00 24.00
12 A2001-WR*12 22.00 26.00
13 A2001-WR*13 24.00 28.00
14 A2001-WR*14 26.00 30.00
2  0.5
A -- -- -- -- --
B
20 A2001-WR*20 38.00 42.00

材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated A2001(PH) connector 2.0mm [.079] pitch

A2001-WRB A2001-WRC Poles Part No. DIM=A DIM=B
2 A2001-SV02 2.00 7.95
3 A2001-SV03 4.00 9.95
4 A2001-SV04 6.00 11.95
7.8 5 A2001-SV05 8.00 13.95
9.6
6 A2001-SV06 10.00 15.95
7 A2001-SV07 12.00 17.95
-- -- -- -- --
18 A2001-SV18 34.00 39.95
2 A2001-SR02 2.00 7.95
3 A2001-SR03 4.00 9.95
4 A2001-SR04 6.00 11.95
5 A2001-SR05 8.00 13.95
6 A2001-SR06 10.00 15.95
2  0.5
A -- -- -- -- --
B
18 A2001-SR18 34.00 39.95

材料 Material: LCP UL94V-0 & Brass/Tin-plated 材料 Material: LCP UL94V-0 & Brass/Tin-plated
A2001-SV A2001-SR

6.5 0.5
 7.6 8.6

5.4 2
2  0.5
A 5.6
B

2
A
B

LIANHE ELECTRONICS CO.,LTD. 35
