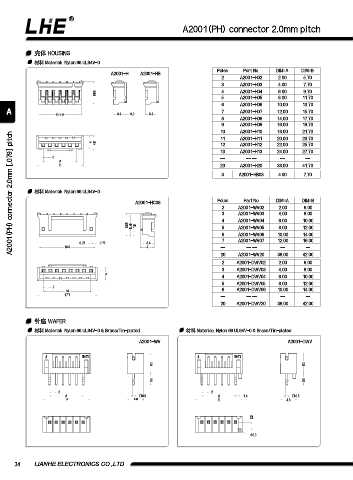

A2001(PH) connector 2.0mm pitch

壳体 HOUSING
材料 Material: Nylon 66 UL94V-0

A2001-H A2001-HB Poles Part No. DIM=A DIM=B
2 A2001-H02 2.00 5.70
3 A2001-H03 4.00 7.70
6.95 4 A2001-H04 6.00 9.70
5 A2001-H05 8.00 11.70
6 A2001-H06 10.00 13.70
A B-1.2 3.4 0.3 3.4 7 A2001-H07 12.00 15.70
8 A2001-H08 14.00 17.70
9 A2001-H09 16.00 19.70
10 A2001-H10 18.00 21.70
A2001(PH) connector 2.0mm [.079] pitch
11 A2001-H11 20.00 23.70
4.6 12 A2001-H12 22.00 25.70
4
13 A2001-H13 24.00 27.70
2 -- -- -- -- --
A
B 20 A2001-H20 38.00 41.70
3 A2001-HB03 4.00 7.70

材料 Material: Nylon 66 UL94V-0
A2001-HC08 Poles Part No. DIM=A DIM=B
2 A2001-WV02 2.00 6.00
3 A2001-WV03 4.00 8.00
4 A2001-WV04 6.00 10.00
6.95 6.45 1.8 5 A2001-WV05 8.00 12.00
6 A2001-WV06 10.00 14.00
7 A2001-WV07 12.00 16.00
0.75 0.75 3.4
16.5 4 -- -- -- -- --
20 A2001-WV20 38.00 42.00
2 A2001-DWV02 2.00 6.00
3 A2001-DWV03 4.00 8.00
4
4 A2001-DWV04 6.00 10.00
5 A2001-DWV05 8.00 12.00
2
14 6 A2001-DWV06 10.00 14.00
17.7 -- -- -- -- --
20 A2001-DWV20 38.00 42.00

针座 WAFER
材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated 材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated
A2001-WV A2001-DWV

6.1 6.1

3.4 3.4

2 2
A  0.5 A 1.4  0.5
B 4.8 B 4.8

2.3

0.9

34 LIANHE ELECTRONICS CO.,LTD.
