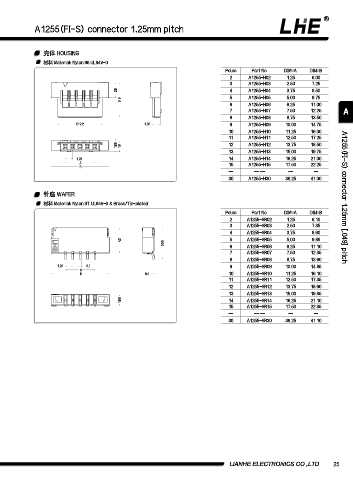

A1255(FI-S) connector 1.25mm pitch

壳体 HOUSING
材料 Material: Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B
2 A1255-H02 1.25 6.00
3 A1255-H03 2.50 7.25
2.6 4 A1255-H04 3.75 8.50
5 A1255-H05 5.00 9.75
5.9
6 A1255-H06 6.25 11.00
7 A1255-H07 7.50 12.25 A
8 A1255-H08 8.75 13.50
B-2.2 1.36 9 A1255-H09 10.00 14.75
10 A1255-H10 11.25 16.00
11 A1255-H11 12.50 17.25
1.66 1.9 12 A1255-H12 13.75 18.50
13 A1255-H13 15.00 19.75
1.25 14 A1255-H14 16.25 21.00
A
B 15 A1255-H15 17.50 22.25
-- -- -- -- --
30 A1255-H30 36.25 41.00

针座 WAFER A1255(FI-S) connector 1.25mm [.049] pitch
材料 Material: Nylon 9T UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B
2 A1255-SR02 1.25 6.10
3 A1255-SR03 2.50 7.35
4 A1255-SR04 3.75 8.60
4.3 5 A1255-SR05 5.00 9.85
5.35 6 A1255-SR06 6.25 11.10
7 A1255-SR07 7.50 12.35
8 A1255-SR08 8.75 13.60
1.25 0.3 9 A1255-SR09 10.00 14.85
A
B 0.3 10 A1255-SR10 11.25 16.10
11 A1255-SR11 12.50 17.35
12 A1255-SR12 13.75 18.60
13 A1255-SR13 15.00 19.85
1.95 14 A1255-SR14 16.25 21.10
15 A1255-SR15 17.50 22.35
-- -- -- -- --
30 A1255-SR30 36.25 41.10

LIANHE ELECTRONICS CO.,LTD. 25
