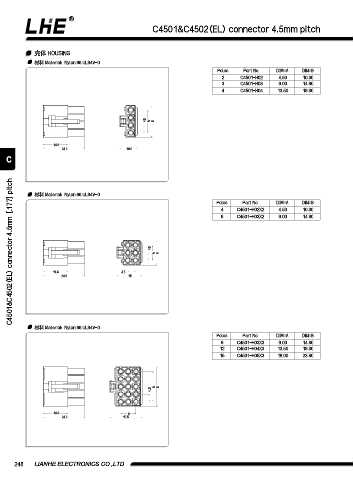

C4501&C4502(EL) connector 4.5mm pitch

壳体 HOUSING
材料 Material: Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B
2 C4501-H02 4.50 10.30
3 C4501-H03 9.00 14.80
4 C4501-H04 13.50 19.30

4.5 A B

14.6
24.6 10.5
C

C4501&C4502(EL) connector 4.5mm [.177] pitch
材料 Material: Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B
4 C4501-H02X2 4.50 10.30
6 C4501-H03X2 9.00 14.80

4.5
A B

14.6 4.5
24.6 15

材料 Material: Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B
9 C4501-H03X3 9.00 14.80
12 C4501-H04X3 13.50 19.30
15 C4501-H05X3 18.00 23.80

A B
4.5

14.6 9
24.6 19.5

248 LIANHE ELECTRONICS CO.,LTD.
